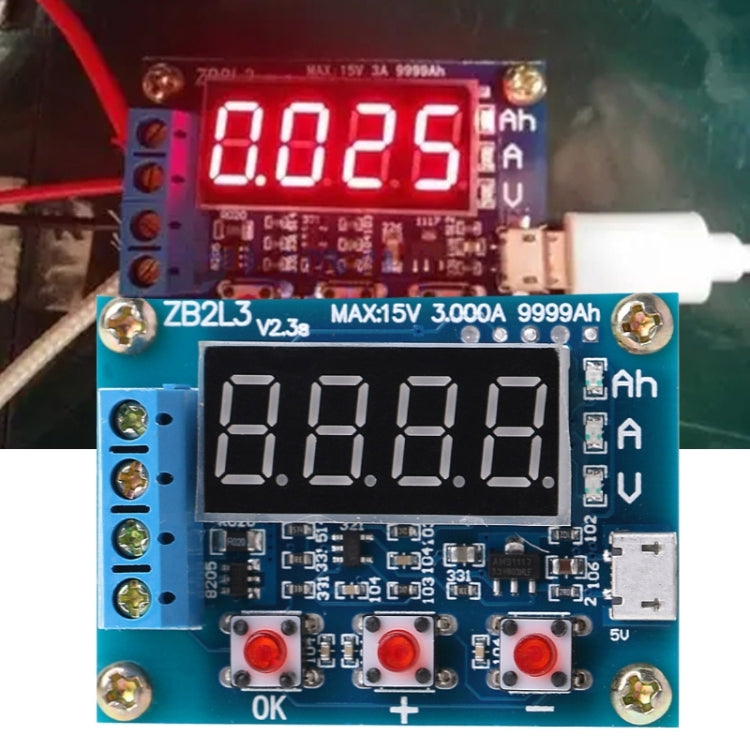

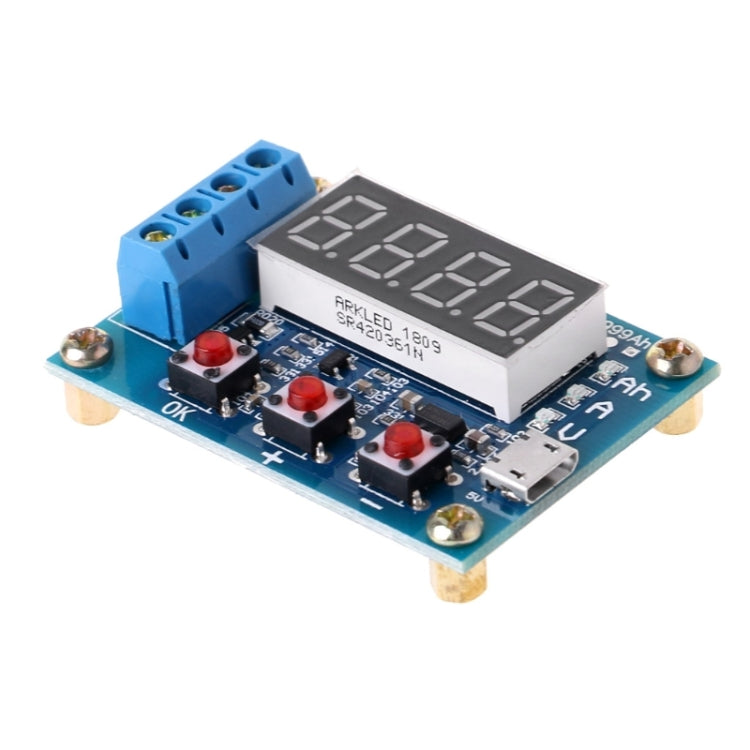

ZB2L3 اختبار قدرة البطارية 1.2-12 فولت 18650 ليثيوم أيون بطارية الرصاص الحمضية قدرة متر التفريغ تستر محلل

Sale Sold out Pre-order
Regular price R 229.00
Regular price Sale price R 229.00
Ships in 1-3 Days

Estimated delivery:

Shipping Included Overseas 6-13 bus days
6-Month Warranty
7-Day Returns

Guaranteed Safe Checkout

Description
Delivery Process
Refunds & Returns

1. معلمات الوحدة:
- جهد مصدر الطاقة: DC4.5-6V (واجهة USB صغيرة)
- تيار العمل: لا يزيد عن 70 مللي أمبير
-جهد التفريغ: 1.00 فولت-15.00 فولت القرار 0.01 فولت
- نطاق الجهد النهائي: 0.5-11.0 فولت
- الدعم من خلال التيار: لا يزيد عن 3.000A دقة 0.001A
- خطأ في قياس الجهد: أقل من 1% + 0.02 فولت
- خطأ القياس الحالي: أقل من 1.2% +-0.002A
- نطاق سعة البطارية: 9999 أمبير (1 أمبير = 1000 مللي أمبير) 2.
2. عندما تكون القيمة كبيرة، يتم تبديلها عن طريق إزاحة العلامة العشرية. عندما تكون أقل من 10Ah، سيتم عرضها كـ X.XXX، وعندما تصل إلى أكثر من 10Ah، سيتم عرضها كـ XX.XX، وهكذا.
3. حجم لوحة الدائرة: 50mmX37mm
4. حجم المنتج النهائي: 50mmX37mmX17mm (الطول × العرض × الارتفاع، بما في ذلك ارتفاع القدم النحاسية)
5. وزن اللوحة والملحقات: لوحة واحدة 28 جم (بما في ذلك العمود النحاسي)، ومقاومتان من السيراميك بقدرة 5 وات 9 جم، ومقاوم 50 وات حوالي 27 جم (بما في ذلك السلك)
6. ملاحظة: من أجل تحسين دقة قياس الجهد، تم تصميم هذه الدائرة خصيصًا مع انحياز التيار المستمر. عندما لا يكون الجهاز متصلاً بأي شيء، سيتم عرض جهد صغير، وهو ما لا يؤثر على القياس الفعلي. 0V) سيعرض 0. إذا كنت تريد فهم المبدأ، يمكنك التحقق من نظرية التراكب في الهندسة الكهربائية.
7. كيفية الاستخدام:
- يجب أن تكون البطارية قيد الاختبار مشحونة بالكامل أولاً.
- قم بتوصيل القطب الموجب للبطارية قيد الاختبار بالقطب الموجب للإدخال، والقطب السالب بالقطب السالب للإدخال. قم بتوصيل الحمل بالقطب الموجب للإخراج والقطب السالب للإخراج، وقم بتوصيل جهاز اختبار micro USB بقوة العمل (غير متوفر لإمداد طاقة USB لسطح المكتب أو الكمبيوتر المحمول). يتم عرض جهد البطارية في هذا الوقت.
- لبدء الاختبار مباشرة، ما عليك سوى الضغط على زر "موافق"، ويمكن لجهاز الاختبار تلقائيًا صياغة جهد إنهاء مناسب وفقًا لجهد الشحن الكامل للبطارية، وسيومض الشاشة 3 مرات لبدء الاختبار. تحتاج إلى ضبط جهد الإنهاء يدويًا، فقط اضغط على زر "+" أو "-" لتعديل حالة عرض جهد البطارية، ويتم عرض جهد الإنهاء في بداية P، ويمثل الجزء الخلفي قيمة الجهد، والدقة 0.1 V، بعد الإعداد، اضغط على "موافق" "بدء الاختبار.
- بعد بدء الاختبار، سيقوم جهاز الاختبار بتشغيل المفتاح الإلكتروني الذي يتحكم في الحمل. سيتم عرض عرض بيانات عملية الاختبار بين سعة التفريغ (Ah)، وتيار التفريغ الحالي (A) وجهد البطارية (V). عندما يصل جهد البطارية إلى جهد الإنهاء المحدد، يقوم جهاز الاختبار بقطع مفتاح التحكم في الحمل، وتبقى بيانات العرض أعلى من السعة (Ah) وتومض بسرعة مع ضوء المؤشر المقابل، والسعة المعروضة هي قدرة التفريغ الفعلية للبطارية، اضغط عليه "موافق" يمكنه إيقاف الوميض والسماح بعرض البيانات بثبات. اضغط على الزر "موافق" مرة أخرى لاستعادة حالة التشغيل واستبدال البطارية لاختبار القسم التالي ...
8. رمز الخطأ والمعنى:
- Err1: جهد البطارية أعلى من 15 فولت
- Err2: جهد البطارية أقل من جهد الإنهاء المحدد
- Err3: لا تستطيع البطارية تحمل تيار تفريغ الحمل أو أن المقاومة الداخلية للخط كبيرة جدًا
- Err4: التيار كبير جدًا (التيار يتجاوز 3.1A)
- Err5: أدى الاستخدام غير السليم أو خطأ في الأسلاك إلى احتراق الجهاز ولا يمكن استخدامه (حرق العينات الحالية أو مفتاح التحكم MOS)
9. ملاحظة: إذا تم عكس البطارية، وعندما يتم تشغيل الحمل ويكون تيار الحمل كبيرًا (حوالي> 0.8A)، فقد يتلف أنبوب تبديل الدائرة!
10. عملية المعايرة الثانوية: اضغط مع الاستمرار على ثلاثة أزرار لتشغيل جهاز الاختبار في نفس الوقت، وأدخل وضع المعايرة، واعرض أولاً عدد سجلات المعايرة، ثم أدخل برنامج أخذ عينات المعايرة الرسمي لعرض 0u0A، ثم قم بقصر الدائرة الكهربية أدخل الأقطاب الموجبة والسالبة واضغط على زر "موافق" لإكمال عرض J10u، وقم بتطبيق جهد تيار مستمر قياسي يبلغ 10.00 فولت بين أقطاب الإدخال الموجبة والسالبة، واضغط على زر "موافق"، ثم قم بعرض J2.0A، تنطبق على الإخراج القطب السلبي (اتجاه التدفق) والقطب السلبي المدخلات (اتجاه التدفق الخارجي) بعد تيار مستمر مستمر يبلغ 2.0A، اضغط على زر "موافق" مرة واحدة لإكمال المعايرة. سيقوم جهاز الاختبار بفحص بيانات المعايرة مسبقًا. إذا كانت بيانات المعايرة موثوقة، فسيتم عرض 4 أرقام معايرة بالتناوب ثم الخروج. إذا رأى التدقيق المسبق أن البيانات غير موثوقة، قم بتجاهل البيانات والخروج.
