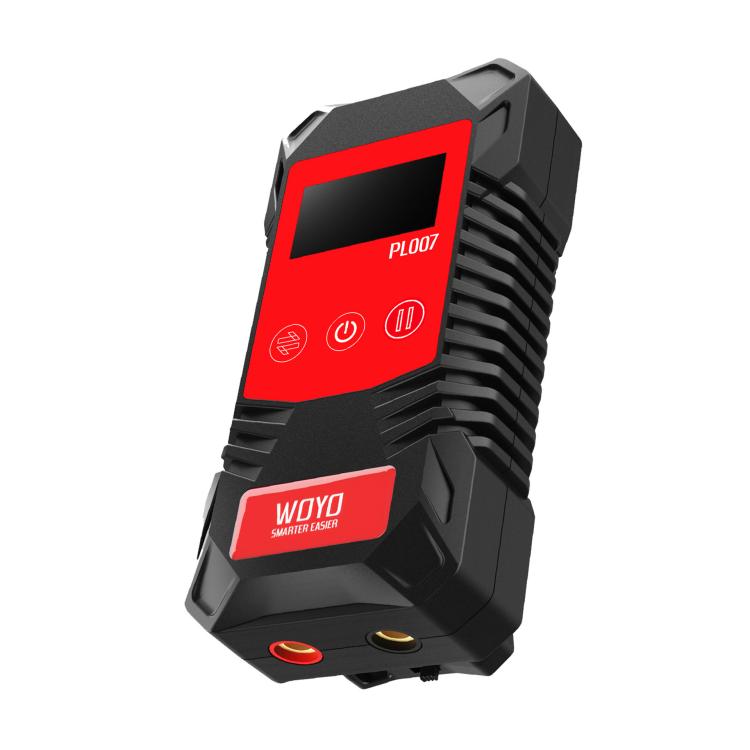

WOYO Handheld CAN/LIN/PWM Digital Communication Circuit Tester(PL007)

• Product type: Electronic Test
• Brand: WOYO
• Compatibility: Automotive electronic products
• Material: Not specified
• Key feature: Automatic identification of CAN-L/CAN-H
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Diagnostic Scan Tools

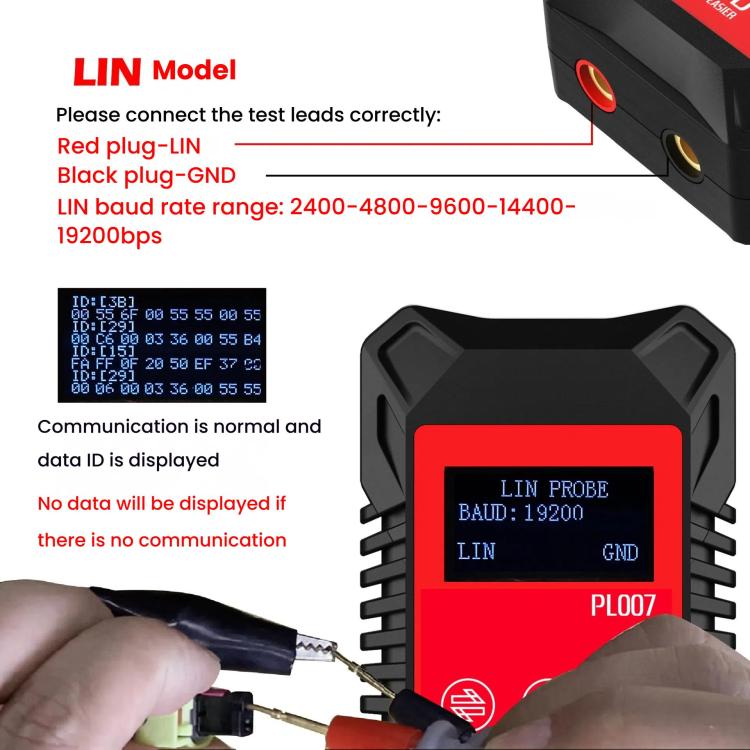

1. Red plug-LIN
2. Black plug-GND

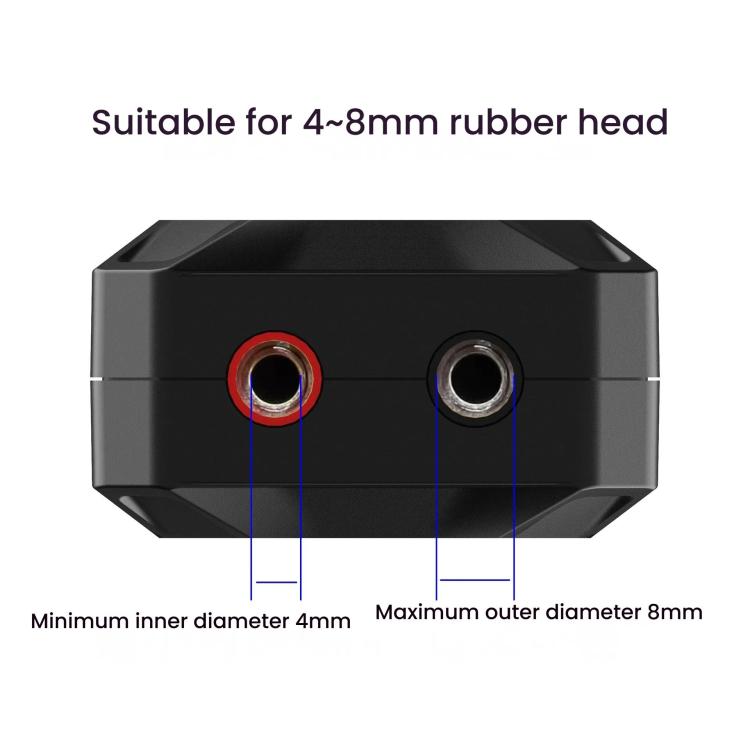

3. Suitable for 4~8mm rubber head
4. LIN baud rate range: 2400-4800-9600-14400-19200bps

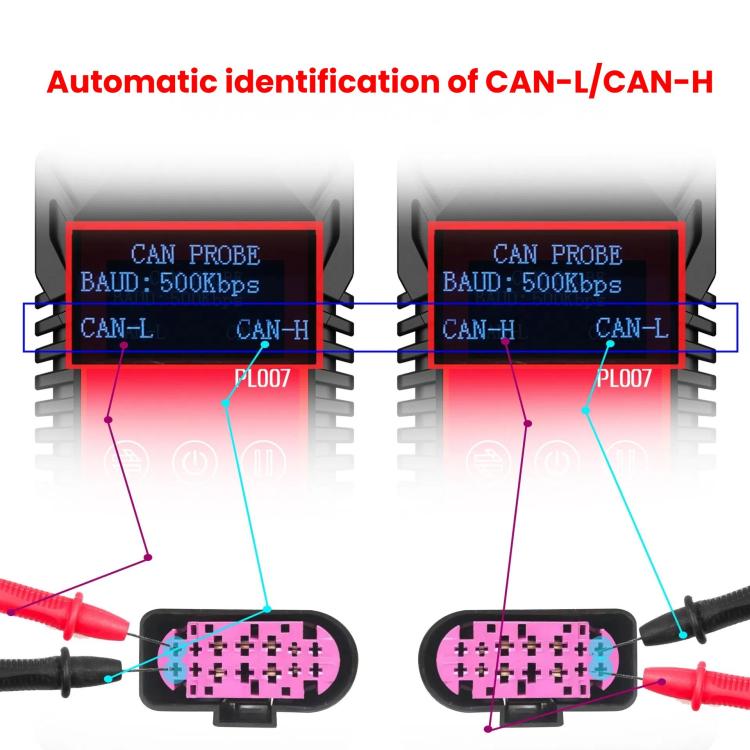

5. Automatic identification of CAN-L/CAN-H

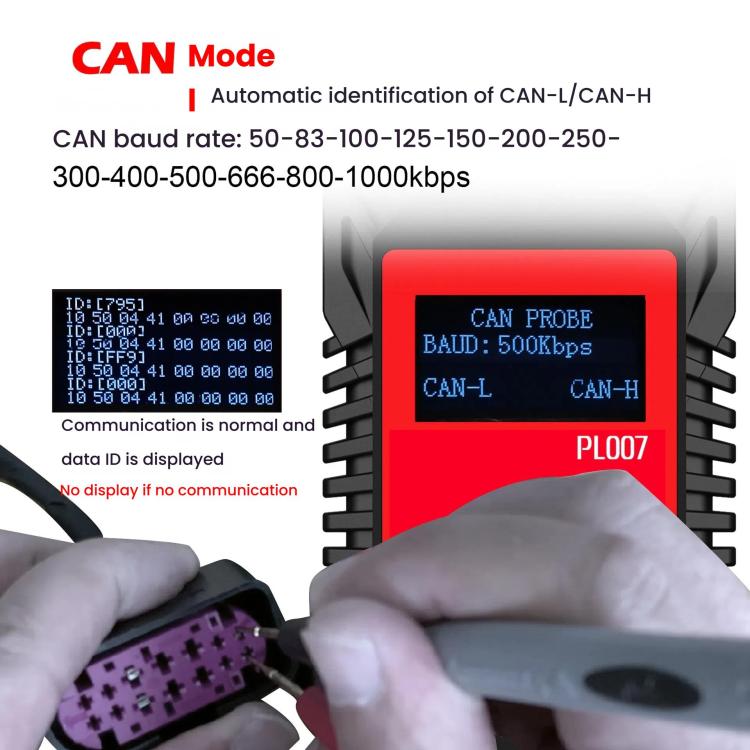

6. CAN baud rate: 50-83-100-125-150-200-250-300-400-500-666-800-1000kbps

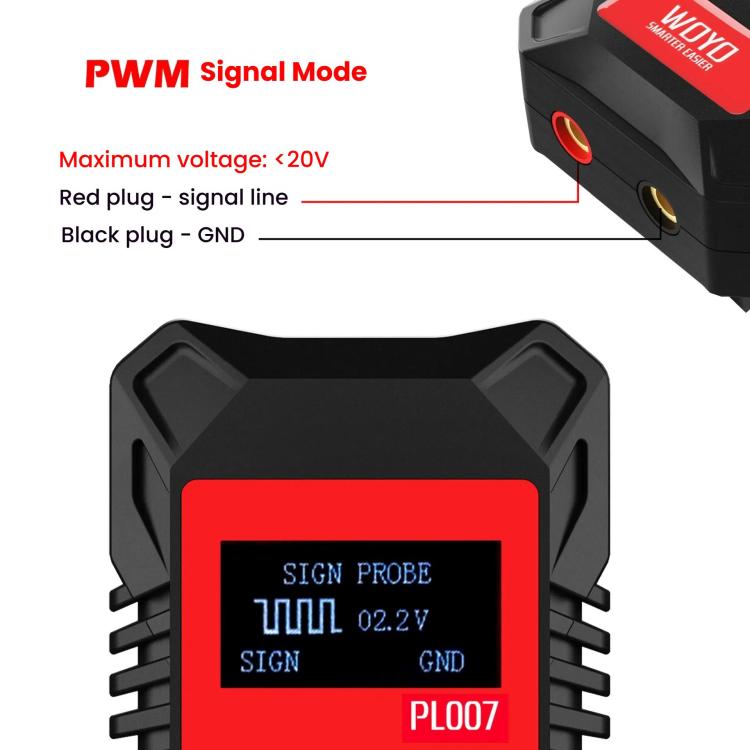

7. PWM signal mode voltage: 20V (MAX)
8. Digital tester designed for automotive electronic products
9. Can detect whether the CAN and LIN communication status is normal, whether there is data online or offline
10. Powered by internal 9V (6F22) battery (not included)

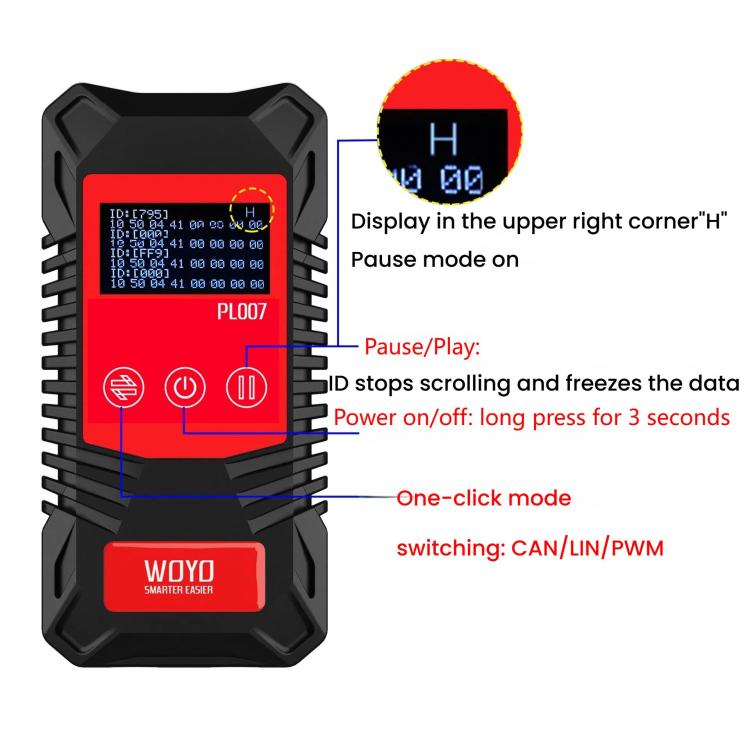

11. Display part of the standard frame data, you can stop reading this ID page

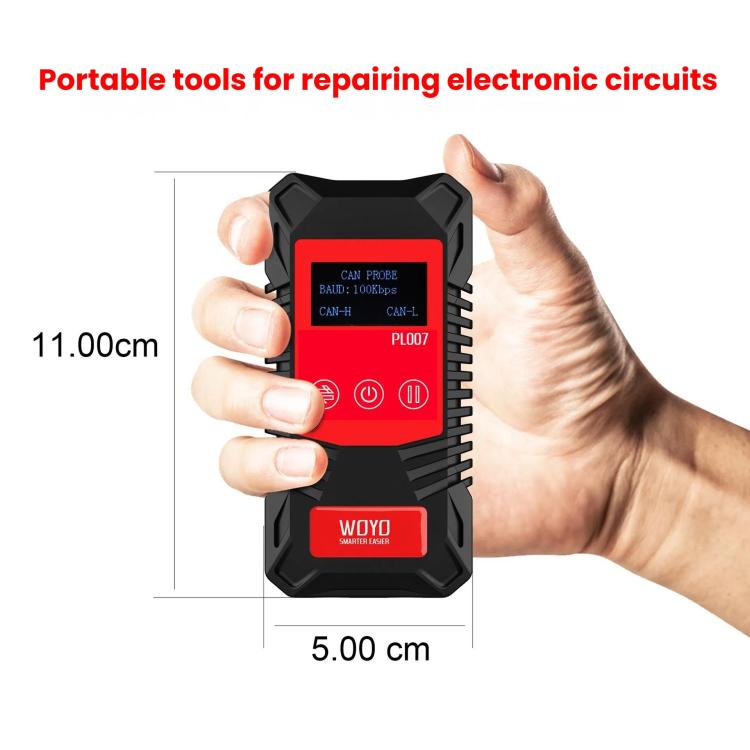

12. Size: 11x5 cm
