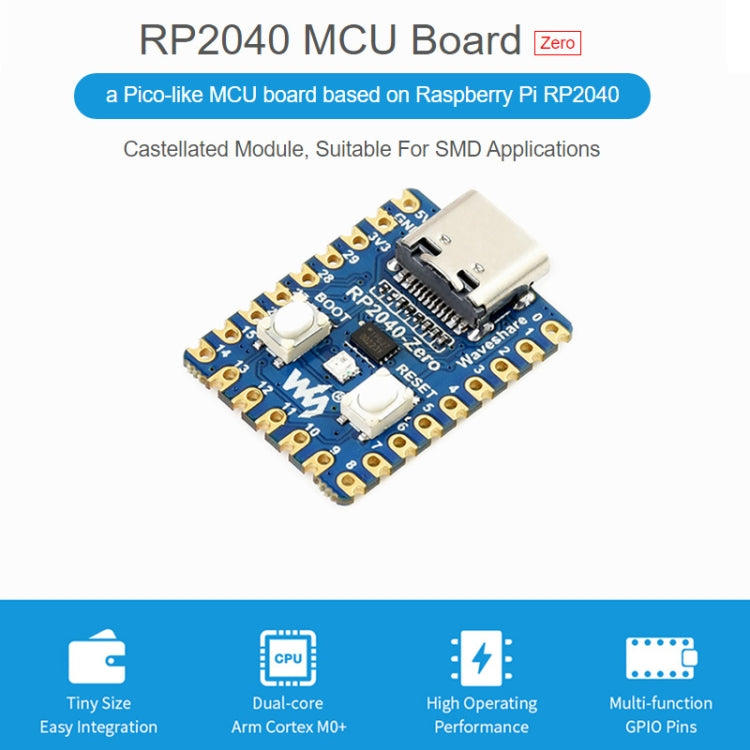

Waveshare RP2040-Zero Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader mini Version

• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: RP2040 microcontroller
• Material: Not specified
• Key feature: Compact design
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom 2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 2MB of on-board Flash memory 4. USB-C connector, keeps it up to date, easier to use 5. Castellated module allows soldering direct to carrier boards 6. USB 1.1 with device and host support 7. Low-power sleep and dormant modes 8. Drag-and-drop programming using mass storage over USB 9. 29 x multi-function GPIO pins (20 x via edge pinout, others via solder points) 10. 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels 11. Accurate clock and timer on-chip 12. Temperature sensor 13. Accelerated floating-point libraries on-chip 14. 8 x Programmable I/O (PIO) state machines for custom peripheral support
