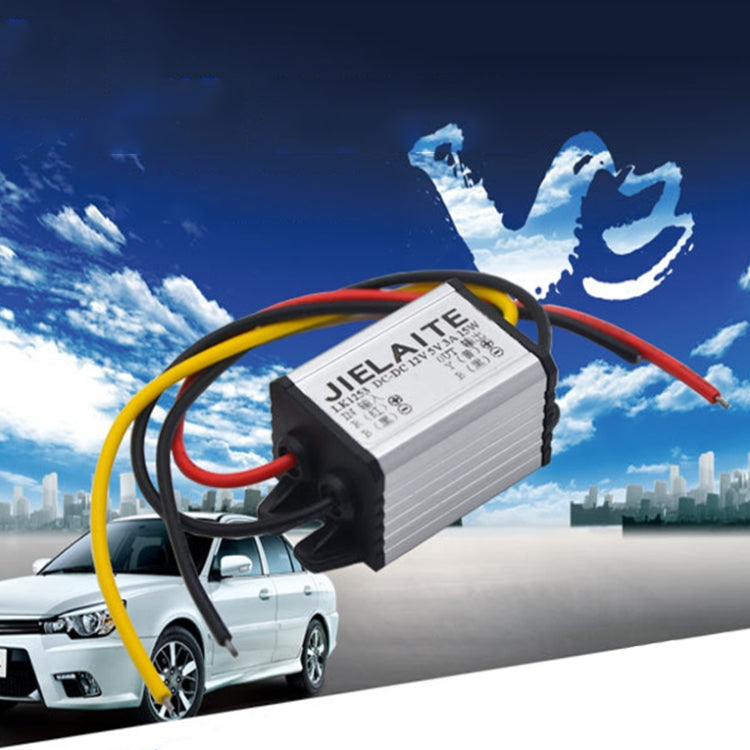

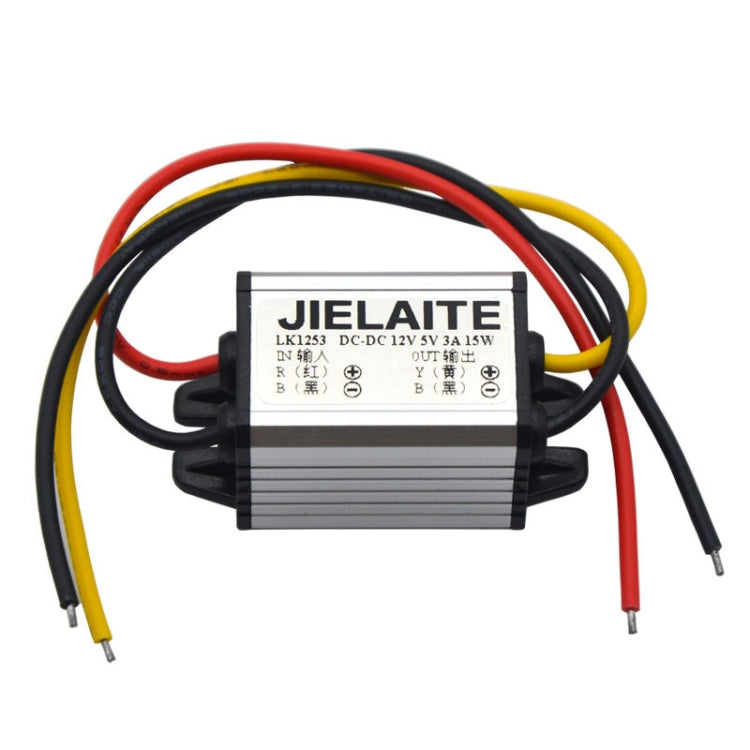

JIELAITE LK1253 15W Aluminum Alloy Intelligent Protection Waterproof Car Power Converter(12V to 4.2V/3A)

• Product type: Step-down Transformer
• Compatibility: DC-DC 8V-22V
• Material: Aluminum alloy, electronic components
• Key feature: Waterproof and intelligent protection
• Color/Variant: Aluminum
• Intended use: Automotive applications
• Category: Power Inverter

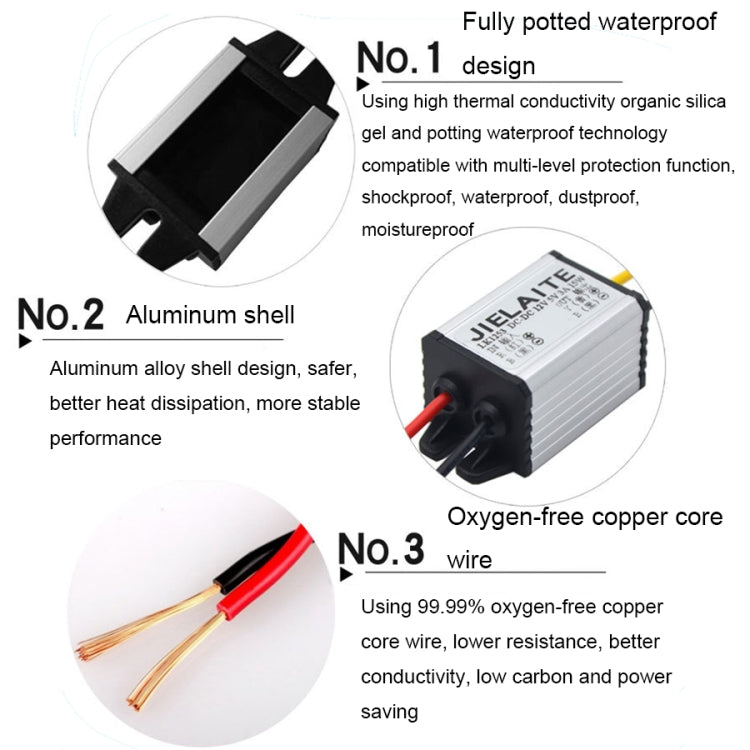

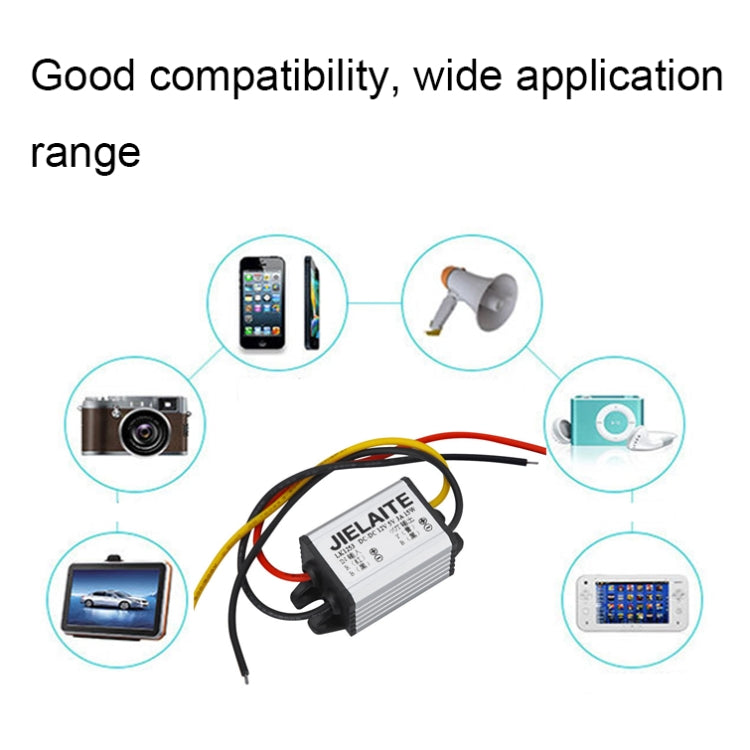

Features:1. Adopt synchronous rectification technology, which greatly reduces the rectification loss at the output end of the switching power supply, thereby improving the conversion rate and reducing the heat generation of the current itself2. It adopts high thermal conductivity organic silica gel and potting waterproof technology, which is compatible with multi-level protection functions, and has functions such as shock resistance, waterproof, dustproof, and moisture-proof.3. Adopt aluminum alloy shell design, which is safer, has better heat dissipation effect and more stable performance4. Small size, does not take up space5. Using 99.99% oxygen-free copper core wire, lower resistance, better conductivity, low carbon and power saving6. Using SMT technology, the product is small in size, reducing electromagnetic and radio frequency interference, and the solder joint defect rate is low7. Good compatibility and wide application rangeProduct parameters:1. Material: aluminum alloy, electronic components2. Module properties: non-isolated step-down DC-DC power supply3. Input voltage: DC-DC8V-22V4. Output voltage: 3.3V/3.7V/4.2V/5V/6V/7.5V/9V5. Output current: 3A MAX 2A at 9V6. Output power: 15W7. Working temperature: minus 40-80 degrees Celsius8. Overcurrent protection: 3.5A9. Waterproof grade: IP6710. Intelligent protection: overcharge protection, overload protection, overcurrent protection, short circuit protection, undervoltage protection, overvoltage protection, overtemperature protection11. Line length: about 13-14 cm12. Mounting hole size: 4mm13. Mounting hole distance: 42mm14. Product size: 35 x 25 x 21mm15. Product net weight: about 35 grams
