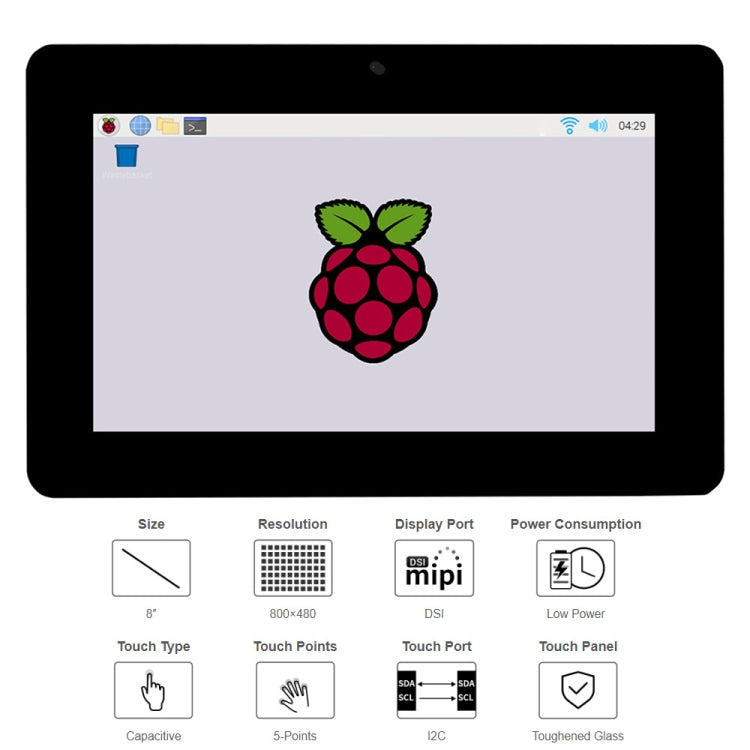

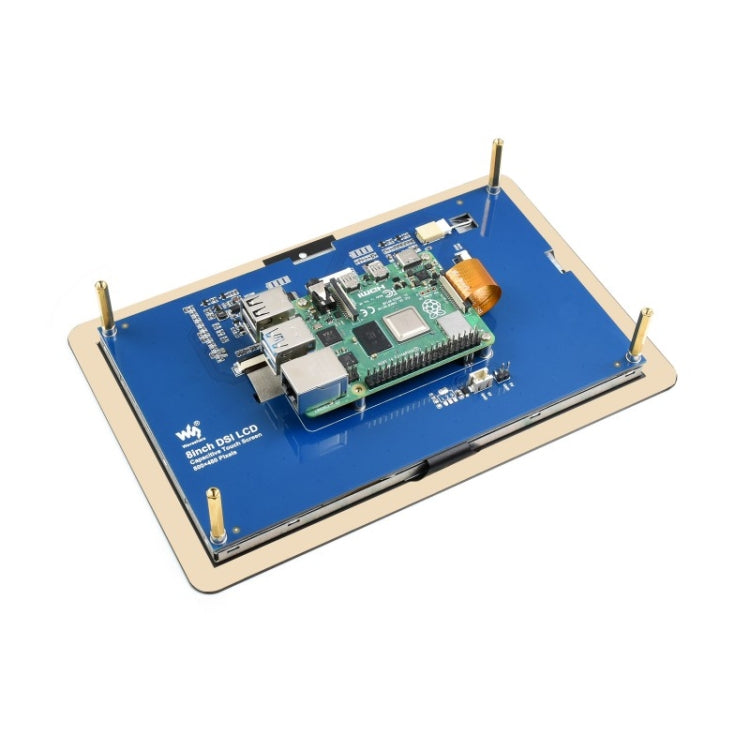

WAVESHARE 8 inch 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface

• Product type: LCD & LED Display Module
• Brand: WAVESHARE
• Compatibility: Raspberry Pi 1, 4B, 3B+, 3A+, 3B, 2B, B+, A+, CM3/3+/4
• Material: Not specified
• Key feature: Capacitive touch, driver-free
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Arduino & SCM Supplies

Device & System Support
For Raspberry Pi 1. Support Raspberry Pi OS, 5-points touch, driver free 2. Support Ubuntu / Kali / WIN10 IoT, single point touch, driver free 3. Support Retropie, driver free 4. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4 Note: CM3/3+/4 requires extra adapter board

Features

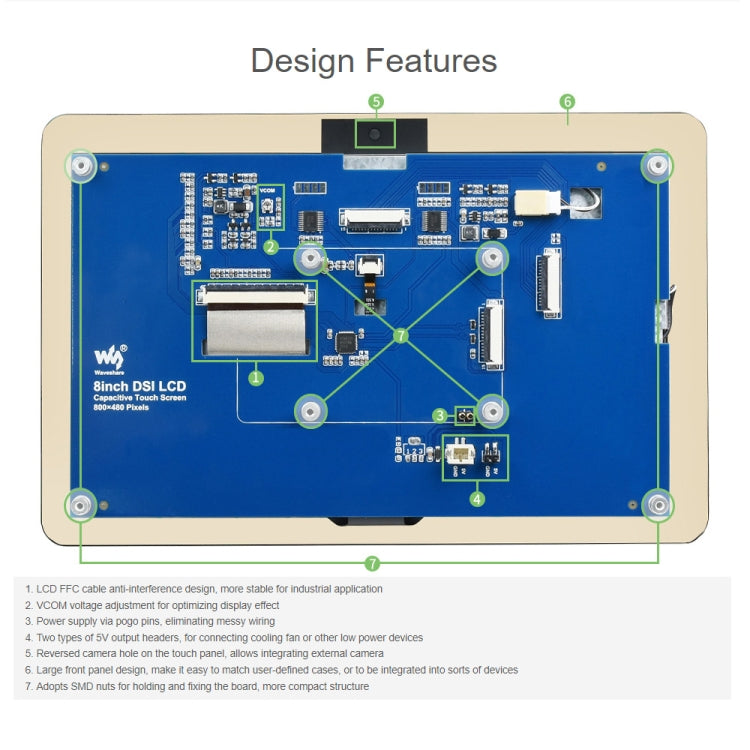

1. LCD FFC cable anti-interference design, more stable for industrial application 2. VCOM voltage adjustment for optimizing display effect 3. Power supply via pogo pins, eliminating messy wiring 4. Two types of 5V output headers, for connecting cooling fan or other low power devices 5. Reversed camera hole on the touch panel, allows integrating external camera 6. Large front panel design, make it easy to match user-defined cases, or to be integrated into sorts of devices 7. Adopt SMD nuts for holding and fixing the board, more compact structure

Package List
1. 8 inch DSI LCD x 1 2. FPC 15 PIN 1.0 pitch 50mm (opposite sides) x 2 3. 2 PIN wire 10cm x 1 4. Screws pack x 1
