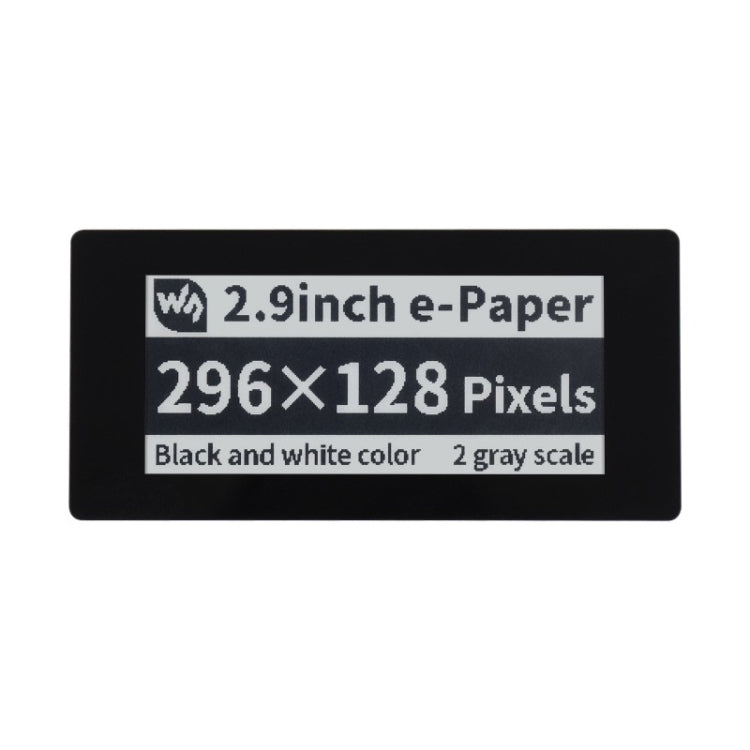

Waveshare 2.9 inch 296 x 128 Pixel 5-Points Capacitive Touch Black / White E-Paper E-Ink Display HAT for Raspberry Pi Pico, SPI Interface
Waveshare 2.9 inch 296 x 128 Pixel 5-Points Capacitive Touch Black / White E-Paper E-Ink Display HAT for Raspberry Pi Pico, SPI Interface
Sale
Sold out
Pre-order
Regular price
R 579.00
Regular price
Sale price
R 579.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: WAVESHARE
• Compatibility: Raspberry Pi Pico
• Material: Electronic components
• Key feature: 5-points touch support
• Color/Variant: Black/White
• Intended use: Everyday use
• Category: Electronics Module
Features
1. 2.9inch capacitive touch ePaper module, 296 x 128 resolution
2. 5-points touch support, user-defined wakeup gesture
3. No backlight, keeps displaying last content for a long time even when power down
4. Ultra low power consumption, basically power is only required for refreshing
5. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
6. Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
7. Comes with development resources and manual (examples for Raspberry Pi)

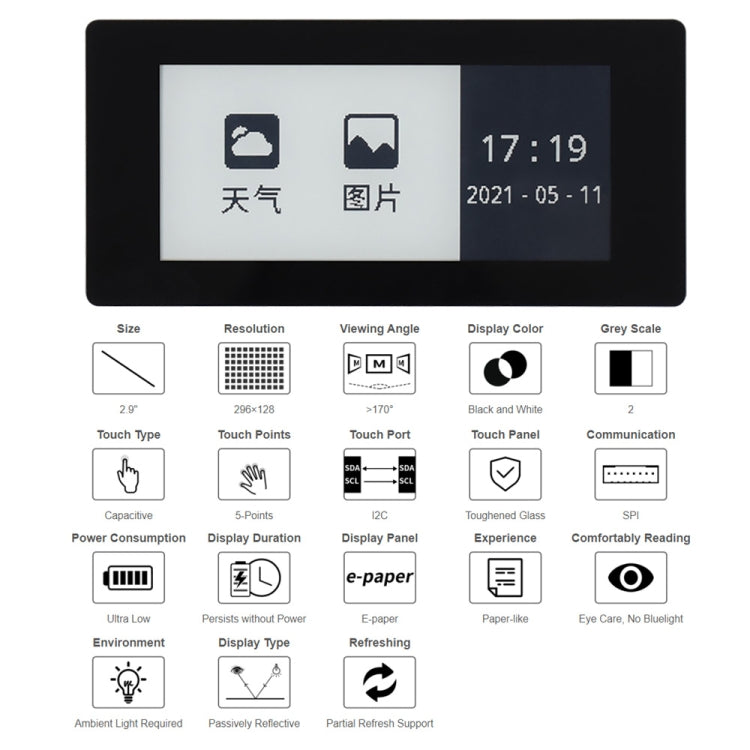

Specification
1. Operating voltage: 3.3V/5V
2. Display color: Black, white
3. Resolution: 296 x 128 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 89.10 x 42.70mm
10. Display size: 66.89 x 29.05mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.227 x 0.226mm
• Brand: WAVESHARE
• Compatibility: Raspberry Pi Pico
• Material: Electronic components
• Key feature: 5-points touch support
• Color/Variant: Black/White
• Intended use: Everyday use
• Category: Electronics Module
Features
1. 2.9inch capacitive touch ePaper module, 296 x 128 resolution
2. 5-points touch support, user-defined wakeup gesture
3. No backlight, keeps displaying last content for a long time even when power down
4. Ultra low power consumption, basically power is only required for refreshing
5. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
6. Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
7. Comes with development resources and manual (examples for Raspberry Pi)
Specification
1. Operating voltage: 3.3V/5V
2. Display color: Black, white
3. Resolution: 296 x 128 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 89.10 x 42.70mm
10. Display size: 66.89 x 29.05mm
11. Refresh power: 26.4mW (typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.227 x 0.226mm
