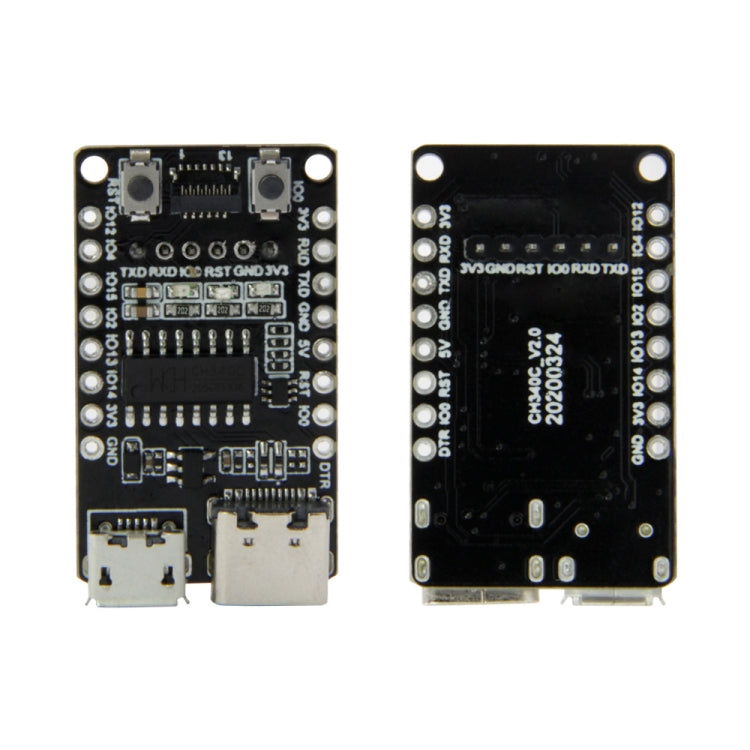

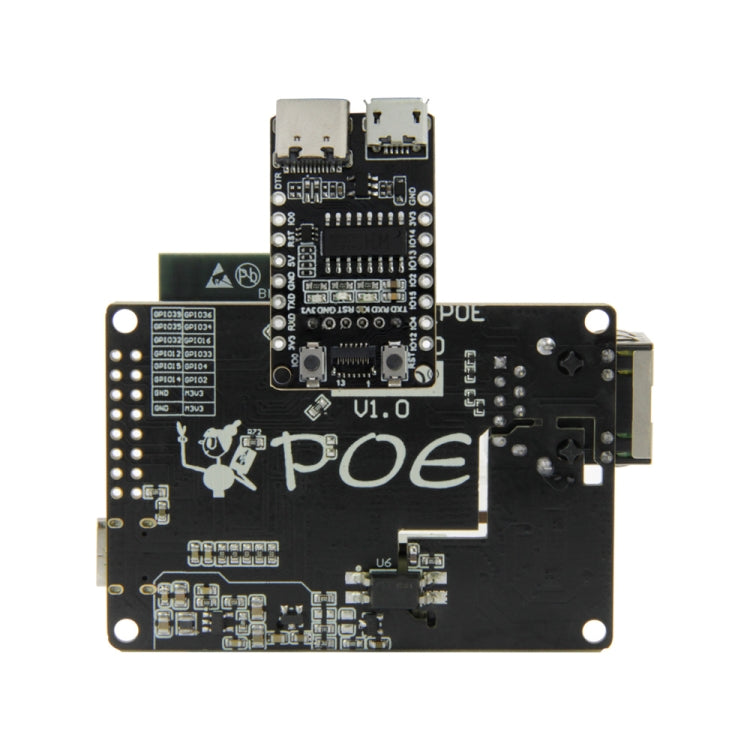

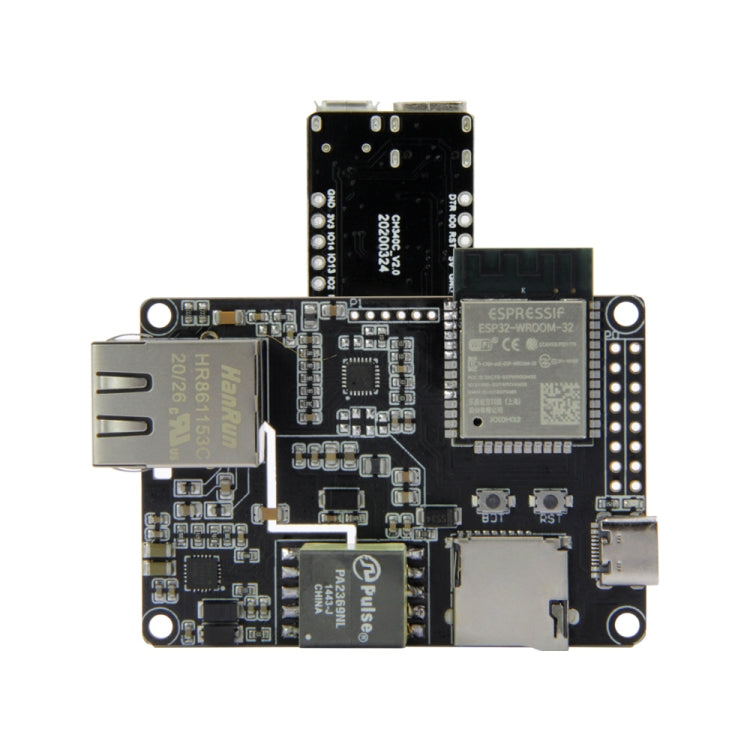

TTGO T-Internet-POE ESP3 Module Downloader Extension Board
TTGO T-Internet-POE ESP3 Module Downloader Extension Board
Sale
Sold out
Pre-order
Regular price
R 229.00
Regular price
Sale price
R 229.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Module
• Brand: TTGO
• Compatibility: ESP32
• Material: Not specified
• Key feature: Downloader extension board
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics

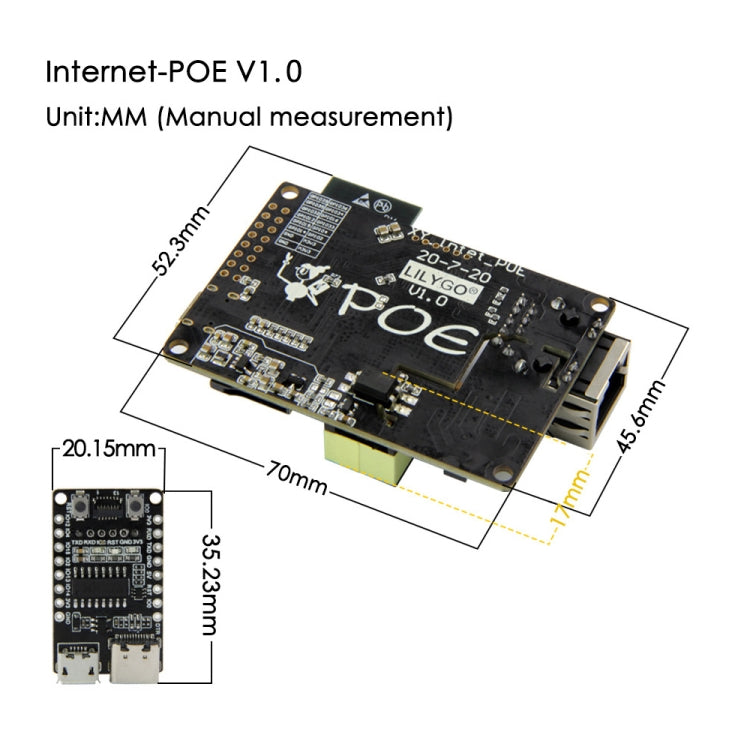

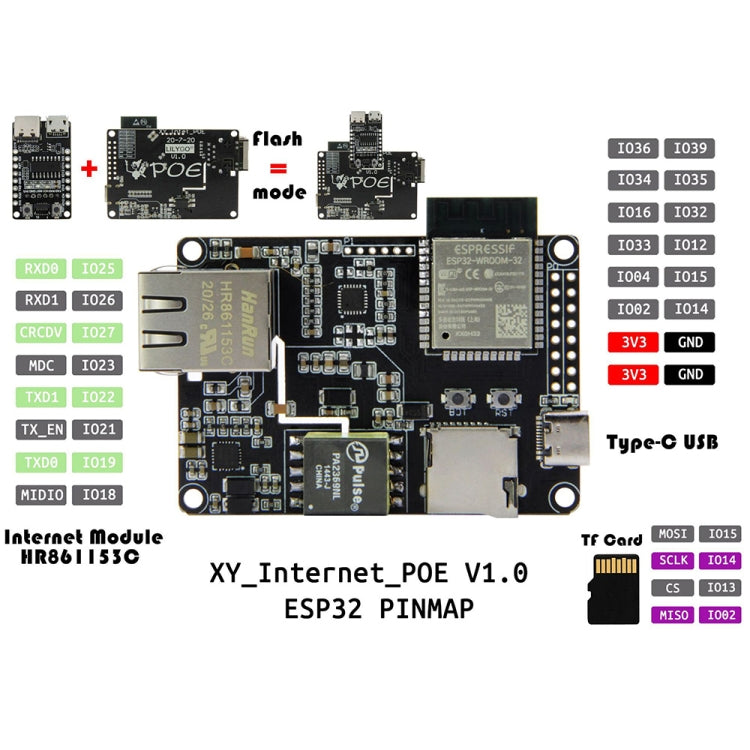

Hardware Specifications 1. Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip 2. Flash: 4MB 3. PSRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: robot, rest 6. External device: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface 7. USB to TTL: CP 2104 8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC 9. Satellite clock: 32.768 MHz crystal oscillator 10. Operating temperature range: -40 degrees Celsius to +85 degrees Celsius 11. Size: 70x52.3x17mm 12. Weight: 26.85g Power Specifications 1. Power input: -C type USB 5V 2. HR861153C Ethernet-POE interface: 50V 3. Working voltage: 2.7V-3.6V 4. Output current: about 1.2A 5. Charging current: 500 mA 6. USB: Type C USB Wi-Fi 1. Standard: FCC/CE-Red/IC/TELEC/KCC/SRRC (ESP 32 chip) 2. Protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps) A-MPDU and A-MSDU aggregation, support 0.4??S guard interval 3. Frequency range: 2.4GHz~2.5GHz (2400 m~2483.5M) 4. Transmit power: 22 dBm 5. Communication distance: 300 meters Bluetooth 1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE standards 2. Radio frequency: -97 dBm sensitivity nzif receiver class-1 class-2 class-3 emitter AFH 3. Audio: CVSD&SBC audio Software Specification 1. Wi-Fi mode: workstation/SoftAP/SoftAP+Station/P2P 2. Security mechanism: WPA/WPA 2/WPA 2-Enterprise/WPS 3. Encryption type: AES/RSA/ECC/SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development/sdk for user firmware development 6. Network protocol: IPv 4, IPv 6, SSL, TCP/UDP/HTTP/FTP/MQTT 7. User configuration: +instruction set, cloud server, Android/iOSapp 8. OS: FreeRTOS
• Brand: TTGO
• Compatibility: ESP32
• Material: Not specified
• Key feature: Downloader extension board
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics
Hardware Specifications 1. Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip 2. Flash: 4MB 3. PSRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: robot, rest 6. External device: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface 7. USB to TTL: CP 2104 8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC 9. Satellite clock: 32.768 MHz crystal oscillator 10. Operating temperature range: -40 degrees Celsius to +85 degrees Celsius 11. Size: 70x52.3x17mm 12. Weight: 26.85g Power Specifications 1. Power input: -C type USB 5V 2. HR861153C Ethernet-POE interface: 50V 3. Working voltage: 2.7V-3.6V 4. Output current: about 1.2A 5. Charging current: 500 mA 6. USB: Type C USB Wi-Fi 1. Standard: FCC/CE-Red/IC/TELEC/KCC/SRRC (ESP 32 chip) 2. Protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps) A-MPDU and A-MSDU aggregation, support 0.4??S guard interval 3. Frequency range: 2.4GHz~2.5GHz (2400 m~2483.5M) 4. Transmit power: 22 dBm 5. Communication distance: 300 meters Bluetooth 1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE standards 2. Radio frequency: -97 dBm sensitivity nzif receiver class-1 class-2 class-3 emitter AFH 3. Audio: CVSD&SBC audio Software Specification 1. Wi-Fi mode: workstation/SoftAP/SoftAP+Station/P2P 2. Security mechanism: WPA/WPA 2/WPA 2-Enterprise/WPS 3. Encryption type: AES/RSA/ECC/SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development/sdk for user firmware development 6. Network protocol: IPv 4, IPv 6, SSL, TCP/UDP/HTTP/FTP/MQTT 7. User configuration: +instruction set, cloud server, Android/iOSapp 8. OS: FreeRTOS
