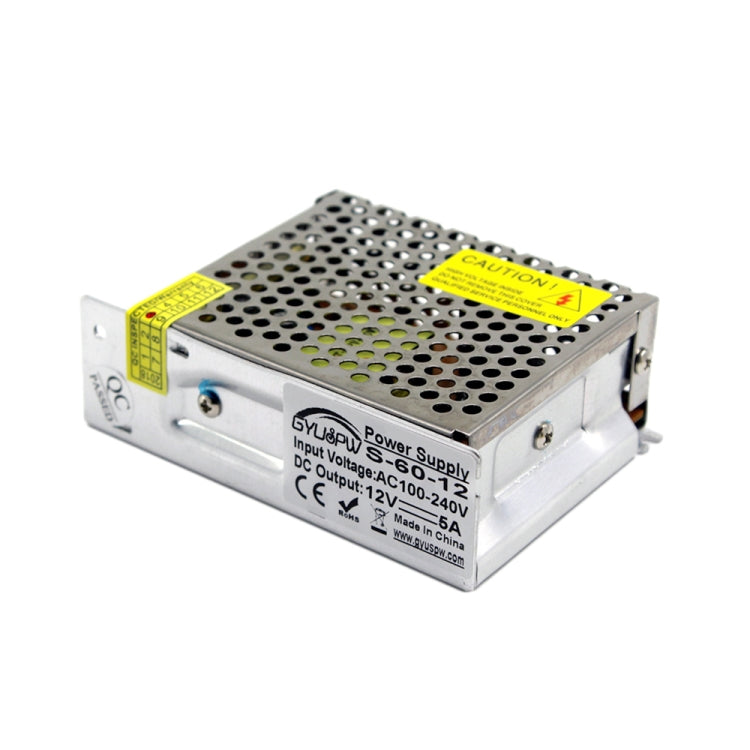

S-60-12 DC12V 5A 60W LED Regulated Switching Power Supply, Size: 110 x 79 x 36mm
S-60-12 DC12V 5A 60W LED Regulated Switching Power Supply, Size: 110 x 79 x 36mm
Sale
Sold out
Pre-order
Regular price
R 349.00
Regular price
Sale price
R 349.00
Unit price
per
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Power Supplies
• Compatibility: DC12V 5A devices
• Material: Aluminum
• Key feature: Enhanced heat dissipation
• Color/Variant: N/A
• Intended use: Everyday use
• Category: LED Accessories

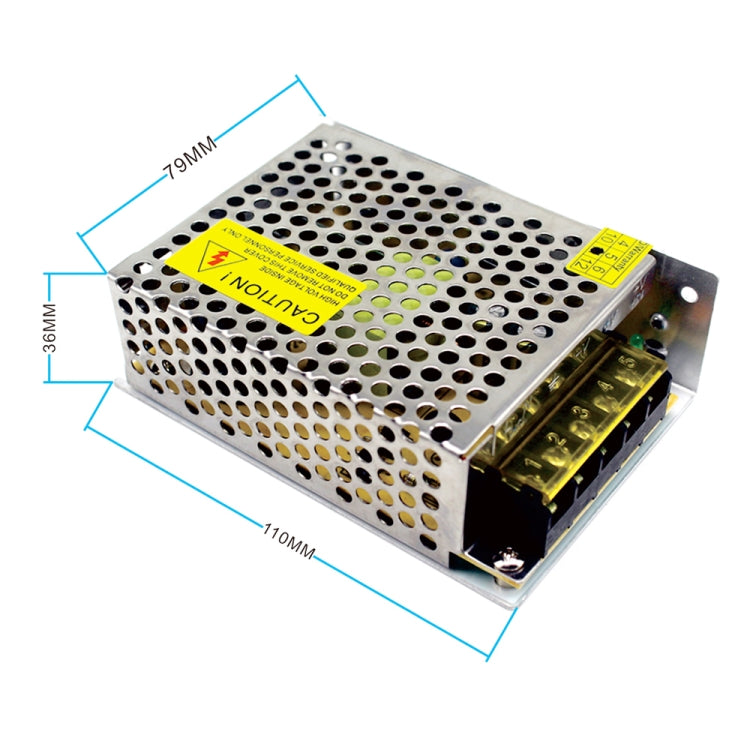

1. All products have passed the full power aging test to provide safety and stability. 2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product. 3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V) 4. Output voltage: DC12V 0-5A 5. Difference range: +/- 1% 6. Power: 60W 9. Output adjustable voltage range: +/- 5% 10. Frequency: 50-60Hz 11. Leakage current: less than 1mA / 230V 12. Temperature coefficient: +/- 0.03%/degree Celsius 13. Start, rise, hold time: 200ms, 50ms, 20ms 14. Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis 15. Protection: overload, overvoltage, overcurrent, short circuit 16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC 17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH 18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH 19. Size: 110 x 79 x 36mm
• Compatibility: DC12V 5A devices
• Material: Aluminum
• Key feature: Enhanced heat dissipation
• Color/Variant: N/A
• Intended use: Everyday use
• Category: LED Accessories
1. All products have passed the full power aging test to provide safety and stability. 2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product. 3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V) 4. Output voltage: DC12V 0-5A 5. Difference range: +/- 1% 6. Power: 60W 9. Output adjustable voltage range: +/- 5% 10. Frequency: 50-60Hz 11. Leakage current: less than 1mA / 230V 12. Temperature coefficient: +/- 0.03%/degree Celsius 13. Start, rise, hold time: 200ms, 50ms, 20ms 14. Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis 15. Protection: overload, overvoltage, overcurrent, short circuit 16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC 17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH 18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH 19. Size: 110 x 79 x 36mm
