MaAnt RC-3 3D Infrared Thermal Imager Short Circuit Thermometer

Specification:
1. Resolution: 256 x 192
2. Frame rate: 25Hz
3. Lens Angle: 56 x 42 degrees
4. Temperature measurement distance: 3mm-15mm
5. Device port: USB Type-C
6. Input voltage: DC 5V
7. Temperature range: -15-600 degrees Celsius
8. Storage temperature: -20-60 degrees Celsius
9. Operating temperature: 0-50 degrees Celsius
10. Net weight: 591g
11. Product size: 15 x 15 x 23cm

Features:
1. Ultra clear detail, panoramic view, the third generation infrared thermal imaging analyzer, check for leakage, short-circuit location, complicated and complicated disease

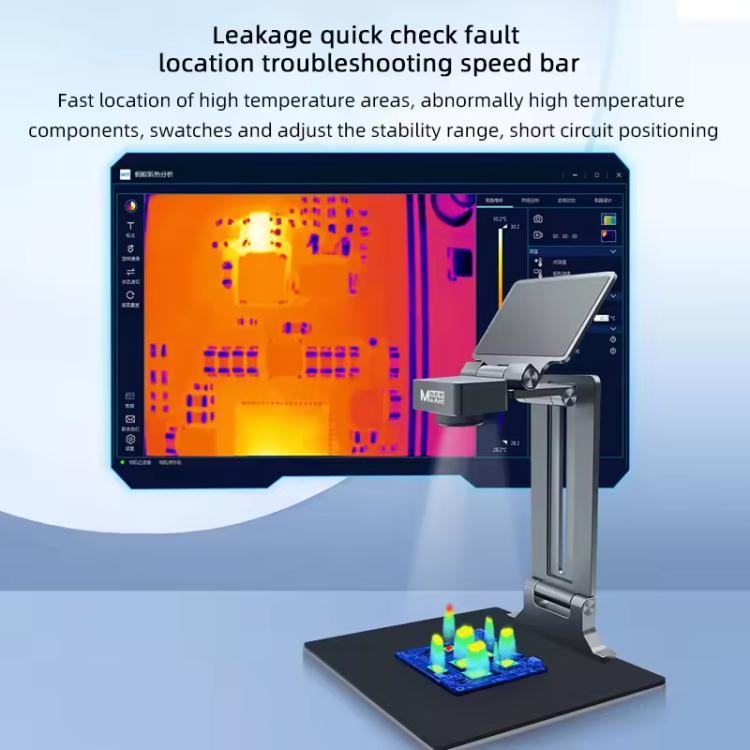

2. A quick check of leakage, open circuit positioning, difficult speed rower, fast location of high-temperature areas, abnormally, high-temperature components, color plate and adjust the stability range, short circuit positioning

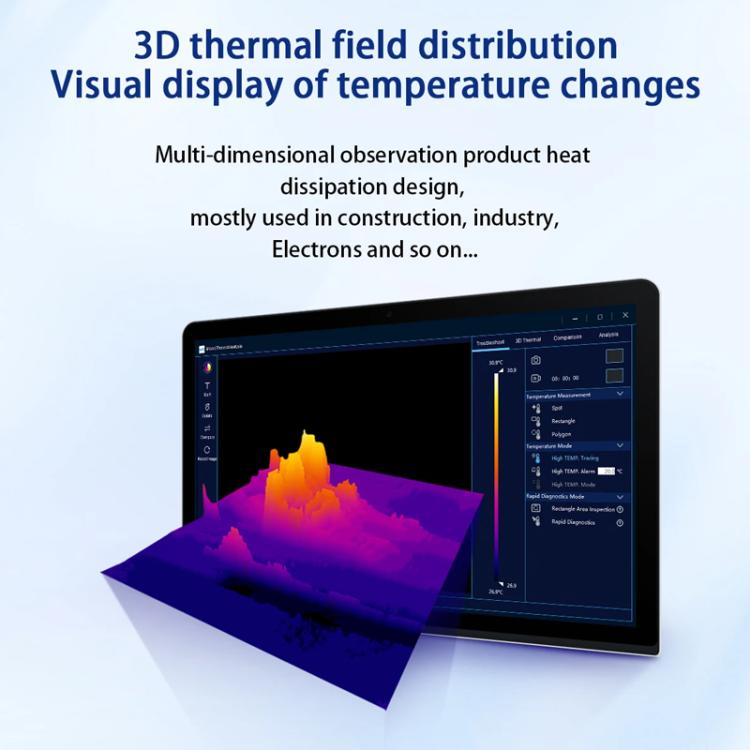

3. 3D thermal field distribution, visual display of temperature changes, multi-dimensional observation product heat dissipation design, mostly used in construction, industry, electrons, and so on
4. Optional HD 30mm macro mirror, the local details of the item can be enlarged to easily detect the motherboard, abnormal areas, quickly troubleshoot problems

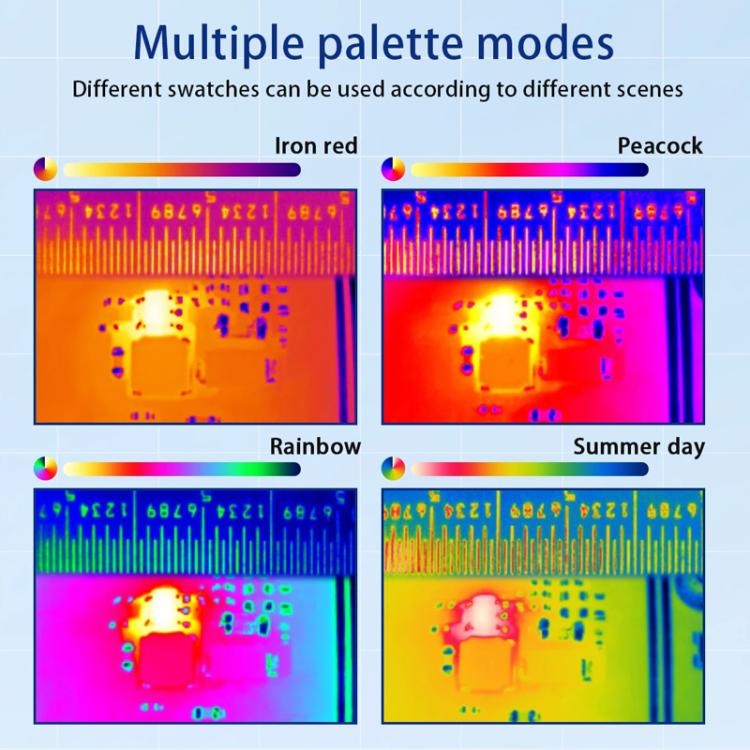

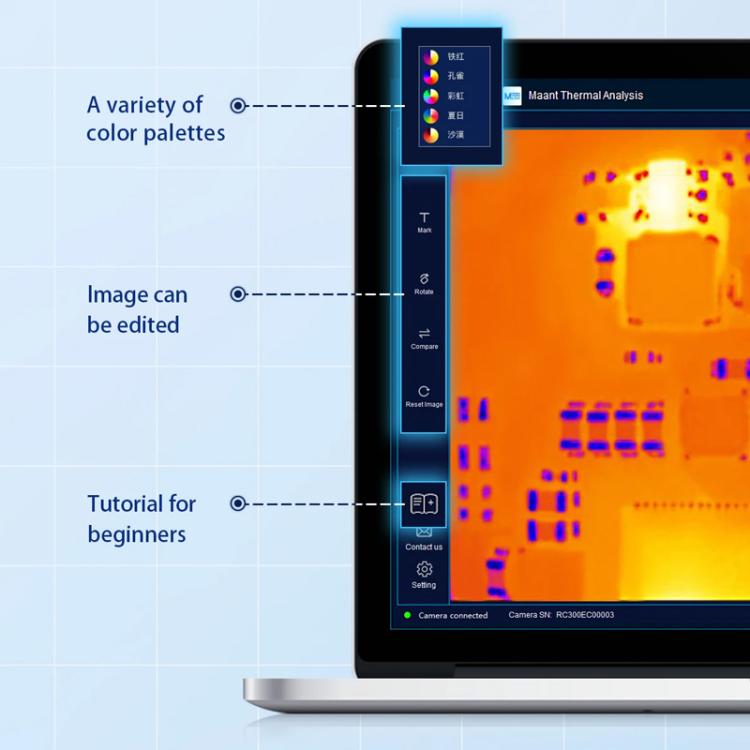

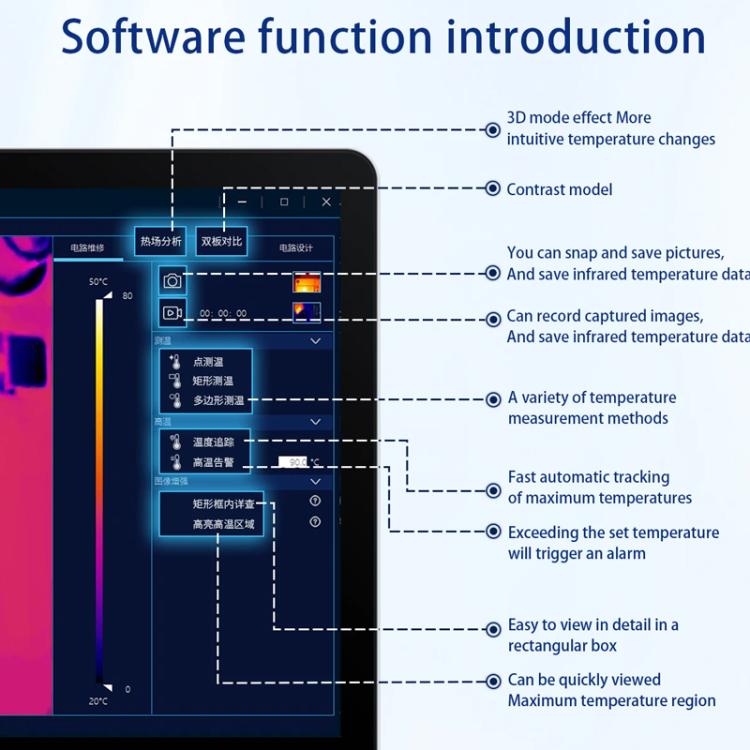

5. Professional repair software to solve problems quickly, multiple palette modes, and different swatches can be used according to different scenes

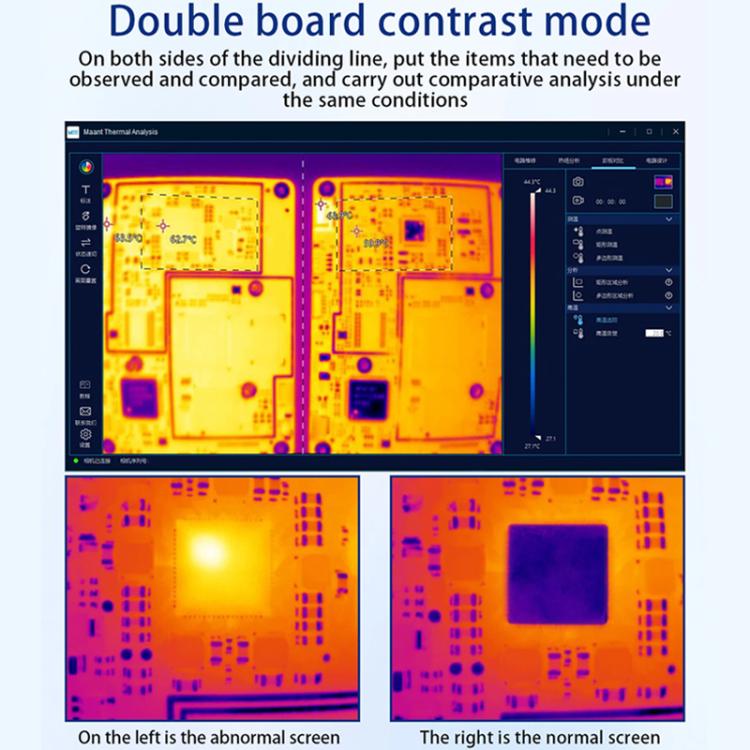

6. Double board contrast mode, on both sides of the dividing line, put the items that need to be observed and compared and carry out comparative analysis under the same conditions
7. In rectangular analysis mode, you can simultaneously watch the comparative analysis of regional temperatures
8. Temperature range: Minimum temperature: -15 degrees Celsius; Maximum temperature: 600 degrees Celsius
9. High-temperature abnormal alarm, when the temperature alarm switch is turned on and the set the temperature threshold number is exceeded, a buzzer will sound an alert and the frame will flash with a red border
10. Multi-platform applications are powered on with one key, after opening the software, connect the infrared thermal imaging to the computer via a USB cable
11. Press the top power button, and the software interface will appear infrared effect, can support Win10 and above systems and mobile phone Android terminal
12. Adjustable lens height, the position can be quickly adjusted according to the needs of the item, observe objects in detail from zero distance
