JTX A9 High-Precision Digital Display Curve Waveform Multifunction Measuring Meter
JTX A9 High-Precision Digital Display Curve Waveform Multifunction Measuring Meter
Sale
Sold out
Pre-order
Regular price
R 899.00
Regular price
Sale price
R 899.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
Function:
1. Waveform Pause
2. Short-Circuit Protection Reminder
3. Curve Waveform
4. Multi-Range Analog Meter
5. Multimeter Function
6. USB Function Expansion
7. 4.0-inch Screen
8. Type-C Voltage and Current Tester
9. Intelligent Prompt Tone
10. High-Voltage Intelligent Reminder
11. Upper Computer Function
12. Large Font Display
Specifications:
1. Input Voltage: DC 0~36V
2. Current Accuracy: 0.5mA
3. Detection Current: 0~8A
4. Screen Size: 4.0 inches
5. Protection Voltage: <60V
6. Screen Resolution: 320 x 480
7. Protection Current: <15A
8. Device Power Supply: 5V 2A
9. Output Voltage and Current of Diode Test: 0-2.8V
10. Banana Plugs: 40V 8A
11. Voltage Resolution: 1mV
12. Current Resolution: 0.1mA
Features:
1. Curve waveform multi-function measuring meter, high-precision sampling, digital display, diode accurate voltage measurement
2. A9 curve waveform ammeter, complete function list, makes your maintenance work more handy and efficient, supports a voltage measurement range of 0-36V

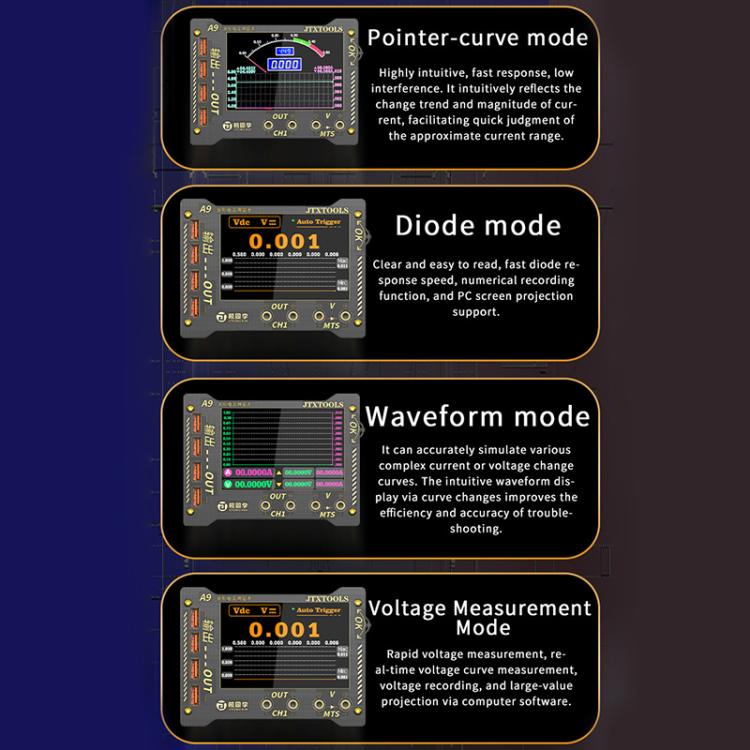

3. Pointer-curve mode: Highly intuitive, fast response, low interference. It intuitively reflects the change trend and magnitude of current, facilitating quick judgment of the approximate current range
4. Diode mode: Clear and easy to read, fast diode response speed, numerical recording function, and PC screen projection support
Waveform mode: It can accurately simulate various complex current or voltage change curves. The intuitive waveform display via curve changes improves the efficiency and accuracy of troubleshooting
5. Voltage Measurement Mode: Rapid voltage measurement, real-time voltage curve measurement, voltage recording, and large-value projection via computer software

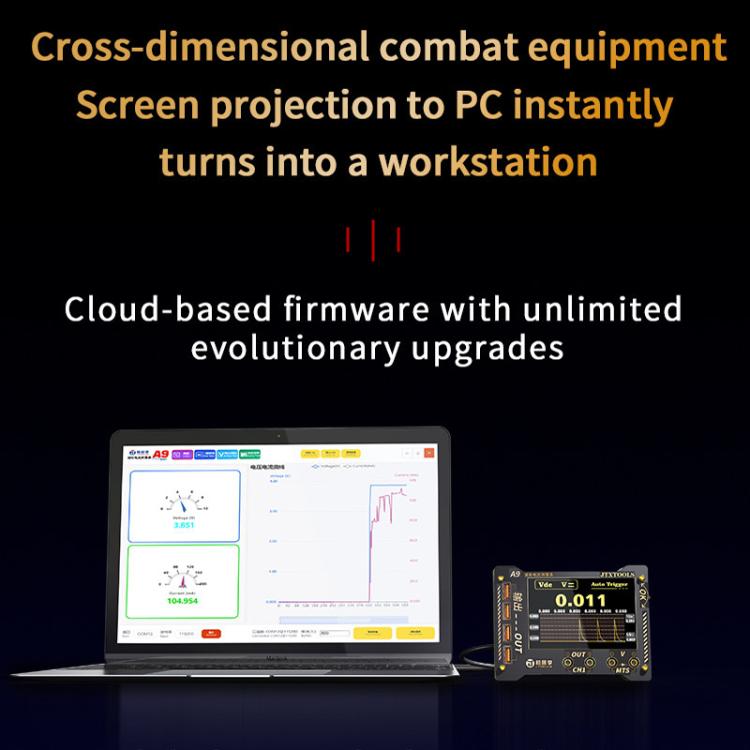

6. Cross-dimensional combat equipment: Screen projection to PC instantly turns into a workstation, cloud-based firmware with unlimited evolutionary upgrades
7. Millisecond-level instantaneous dynamic voltage measurement: Capture speed is 470% faster than traditional devices, and waveform accuracy is 3 times that of flagship models in the industry
8. Ultra-high-speed diode scanning measurement: 0.01-second response scanning, leaves diode leakage nowhere to hide
9. Industrial Vision Revolution: 4.0-inch HD Display
10. Flexible combination compatible with fixed brackets: Adjustable freely up, down, left, and right-no more restrictions on work
11. Waveform mode: It can accurately simulate various complex current or voltage change curves. The intuitive waveform display via curve changes improves the efficiency and accuracy of troubleshooting
