FEELWORLD FVM215-1000 21.5-inch Professional Production Broadcast Monitor High Brightness 1000nit Full HD IPS 4K 60Hz HDMI-compatible 3G-SDI Screen, UK Plug(Black)

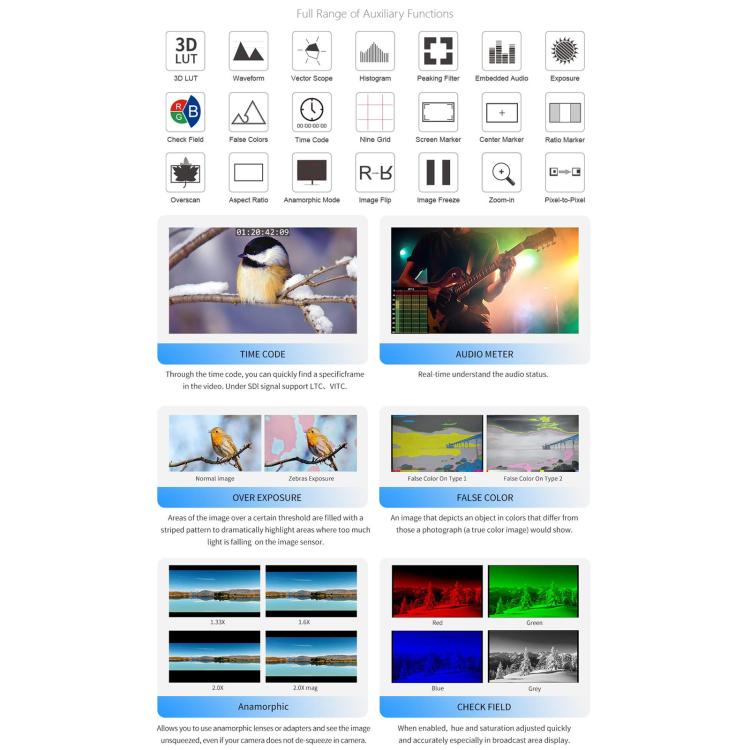

Functions:1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)2. Waveform (RGB, YUV, Y)3. Vector4. Histogram (RGB,Y )5. Embedded Audio6. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)7. False Colors8. Over Exposure (10IRE～100IRE adjustable)9. Check Field (Red, Green, Blue, Mono)10. Time Code--under SDI signal (LTC, VITC)11. Nine Grid12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)13. Image Flip (H Flip, V Flip, H_V Flip )14. Image Freeze15. Center Marker16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)19. Marker Color (Red, Green, Blue, Black, White, Gray)20. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)21. Pixel to Pixel22. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)Specifications:Display Spec.1. Model: FVM215-10002. Screen Size: 21.5 inch IPS3. Resolution: 1920x1080 pixels4. Pixel Pitch: 0.24795 (H) x 0.24795 (V) (mm)5. Color Depth: 8bit6. Color Gamut: 72% NTSC7. Aspect Ratio: 16:98. Brightness: 1000cd/m29. Contrast Ratio: 1000:110. Backlight: LED11. Viewing Angle: 89 degree /89 degree (L/R) 89 degree /89 degree (U/D) Input1. 1 x SDI: 3G-SDI2. 2 x HDMI-compatible: HDMI-compatible 2.03. 1 x USB: USB-A (LUT file import and Firmware update) Output1. 1 x SDI: 3G-SDI2. 2 x HDMI-compatible: HDMI-compatible 2.0 AudioAudio: 3.5mm Stereo Headphone 3G-SDI Input and Output Support Format1. 720p (60/59.94/50/30/29.97/25/24/23.98)2. 1080i (60/59.94/50)3. 1080p (60/59.94/50/30/29.97/25/24/23.98) HDMI-compatible Input and Output Support Format1. 720p (60/59.94/50/30/29.97/25/24)2. 1080i (60/59.94/50)3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98)4. 4K 3840x2160p (60/50/30/29.97/25/24/23.98)5. 4K 4096x2160p(24/23.98) General1. Power Connector: DC IN, XLR2. Input Voltage: DC12～24V3. Power Consumption: Less than 52W4. Working Temperature: 0 degree C~50 degree C5. Storage Temperature: -20 degree C~60 degree C6. Battey Plate: V-mount battery plate7. VESA Size: 100x100mm8. Unit Size: 511.6x345x21.8(mm)9. Unit Weight: 4.275kgPackaging List:1. Monitor x 12. SDI Cable x 13. Micro HDMI-compatible Cable x 14. HDMI-compatible Cable x 15. 5A Power Adapter x 16. V-mount Battery Plate (default to mount on the monitor) x 17. Manual x 1
