DTECH DT-5119 0.5m USB To RS485/422 Industrial Converter Serial Line Communication Adapter
DTECH DT-5119 0.5m USB To RS485/422 Industrial Converter Serial Line Communication Adapter
Sale
Sold out
Pre-order
Regular price
R 530.00
Regular price
Sale price
R 530.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: RS485 / RS232 Series
• Brand: DTECH
• Compatibility: USB to RS485/422
• Material: ABS
• Key feature: Supports long-distance transmission
• Color/Variant: Not specified
• Intended use: Industrial automation control
• Category: Computer Cables & Connectors
1. Compatible standards: The interface is compatible with EIA/TIA RS-485 and RS-422 standards
2. Wire structure: 24WG wire, 80 braided tinned copper braid + aluminum foil double shielding + four tensile rope + 7 cores + 8mm thick wire body, fully shielded environment
3. Chip: FTDI-FT232RL+sp485 dual chip
4. Working mode: asynchronous half-duplex communication, asynchronous full-duplex communication
5. USB signal: VCC, DATA+, DATA-, GND
6. RS-485/RS-422/DB9 pin signal: T/R+, T/R-, GND
7. Signal indication: red light for power supply, green light for sending signal, yellow light for receiving signal
8. Communication rate: 300bps-460800bps, automatic detection of serial port signal rate
9. Communication distance: about 0-5 meters at the USB end; about 0-1200 meters at the RS-485/RS-422 end
10. Number of connectable nodes: support RS-485/RS-422 terminal 32 nodes
11. Communication mode: RS-485 point-to-point half-duplex communication, RS-485 point-to-multipoint half-duplex communication, RS-422 point-to-point full-duplex communication, RS-422 point-to-multipoint full-duplex communication
12. Protection level: about 15kV IEC1000-4-2 Air Discharge
13. Lightning protection and surge protection: 600W lightning surge protection
14. Wiring method: terminal equipment can be connected by twisted pair or shielded wire
15. Transmission medium: twisted pair or shielded wire

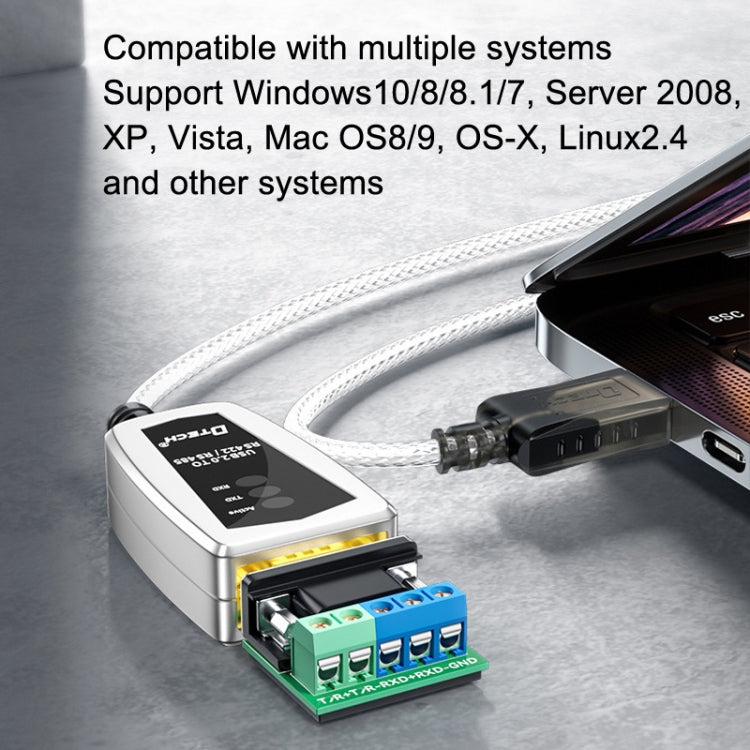

16. Support system: Windows10/8/8.1/7, Server 2008, XP, Vista, Mac OS8/9, OS-X, Linux2.4 and other systems
17. Power supply mode: USB power supply
18. Voltage range: 5V
19. Working current: less than 300mA
20. Application scenarios: industrial automation control system, access control system, power control system, parking lot system, attendance machine, industrial computer, PLC controller, etc.
21. Weight: about 70g
22. Length: about 0.5m
• Brand: DTECH
• Compatibility: USB to RS485/422
• Material: ABS
• Key feature: Supports long-distance transmission
• Color/Variant: Not specified
• Intended use: Industrial automation control
• Category: Computer Cables & Connectors
1. Compatible standards: The interface is compatible with EIA/TIA RS-485 and RS-422 standards
2. Wire structure: 24WG wire, 80 braided tinned copper braid + aluminum foil double shielding + four tensile rope + 7 cores + 8mm thick wire body, fully shielded environment
3. Chip: FTDI-FT232RL+sp485 dual chip
4. Working mode: asynchronous half-duplex communication, asynchronous full-duplex communication
5. USB signal: VCC, DATA+, DATA-, GND
6. RS-485/RS-422/DB9 pin signal: T/R+, T/R-, GND
7. Signal indication: red light for power supply, green light for sending signal, yellow light for receiving signal
8. Communication rate: 300bps-460800bps, automatic detection of serial port signal rate
9. Communication distance: about 0-5 meters at the USB end; about 0-1200 meters at the RS-485/RS-422 end
10. Number of connectable nodes: support RS-485/RS-422 terminal 32 nodes
11. Communication mode: RS-485 point-to-point half-duplex communication, RS-485 point-to-multipoint half-duplex communication, RS-422 point-to-point full-duplex communication, RS-422 point-to-multipoint full-duplex communication
12. Protection level: about 15kV IEC1000-4-2 Air Discharge
13. Lightning protection and surge protection: 600W lightning surge protection
14. Wiring method: terminal equipment can be connected by twisted pair or shielded wire
15. Transmission medium: twisted pair or shielded wire
16. Support system: Windows10/8/8.1/7, Server 2008, XP, Vista, Mac OS8/9, OS-X, Linux2.4 and other systems
17. Power supply mode: USB power supply
18. Voltage range: 5V
19. Working current: less than 300mA
20. Application scenarios: industrial automation control system, access control system, power control system, parking lot system, attendance machine, industrial computer, PLC controller, etc.
21. Weight: about 70g
22. Length: about 0.5m
