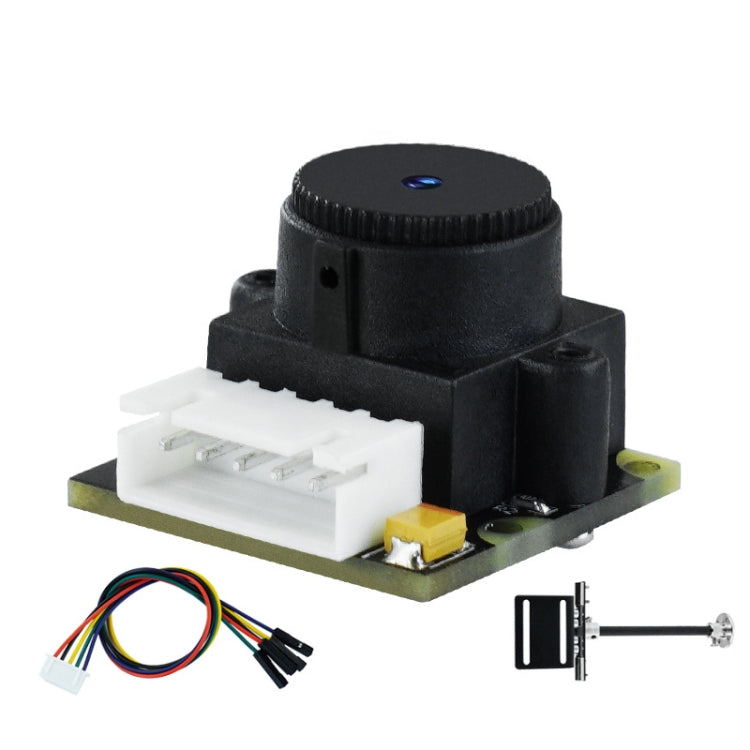

Yahboom Single Column CCD Camera Module Linear Array Sensor, Model: TSL1401+Bracket
Yahboom Single Column CCD Camera Module Linear Array Sensor, Model: TSL1401+Bracket
Em promoção
Esgotado
Pre-order
Preço normal
R 839.00
Preço normal
Preço de saldo
R 839.00
Preço unitário
por
Envio calculado na finalização da compra.
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Não foi possível carregar a disponibilidade de recolha
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Descrição
• Product type: Robotics Accessories
• Brand: Yahboom
• Compatibility: TSL1401 CCD Camera Module
• Material: Not specified
• Key feature: Linear array sensor
• Color/Variant: Not specified
• Intended use: Image processing applications
• Category: Robotics Accessories
1. Working voltage: DC 3.3V-5V
2. Output signal: 128x1 pixels
3. Response time: 100ms (test routine)
4. Equipped with lens: 56-degree distortion-free lens
5. Detection distance: within 5-40cm

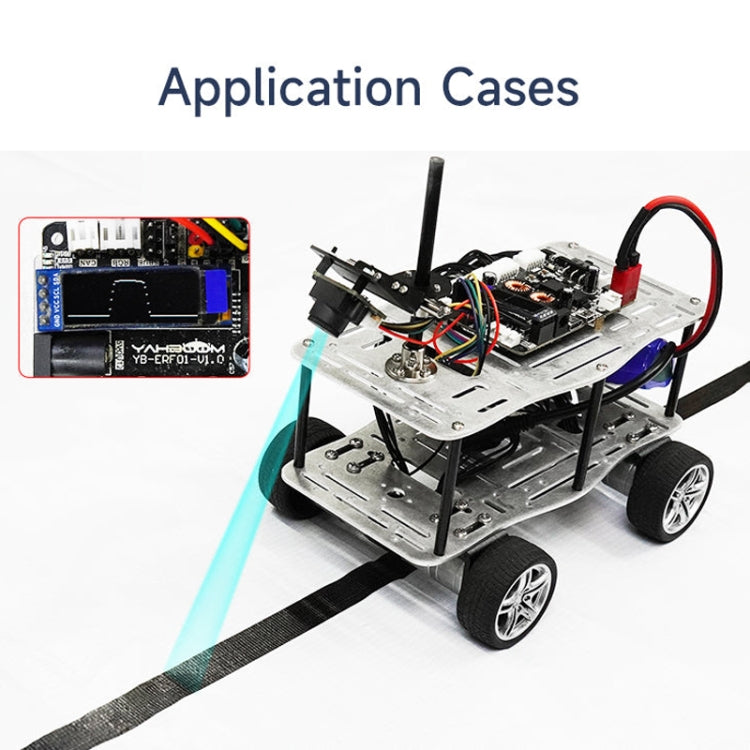

6. Application occasions: STM32 single-chip CCD camera black line tracking, obstacle avoidance, multi-channel line inspection and other image processing electronic design
7. The linear CCD module can collect the image information of the ground line, and extract the characteristic information of the line through the image processing algorithm, so as to achieve higher precision line inspection
8. Stronger adaptability: linear CCD module line inspection is not limited by lighting conditions
9. Stronger scalability: Linear CCD module line inspection can adapt to different line inspection scenarios by changing image processing algorithms and parameters
10. The linear CCD module contains 128 linearly arranged photodiodes

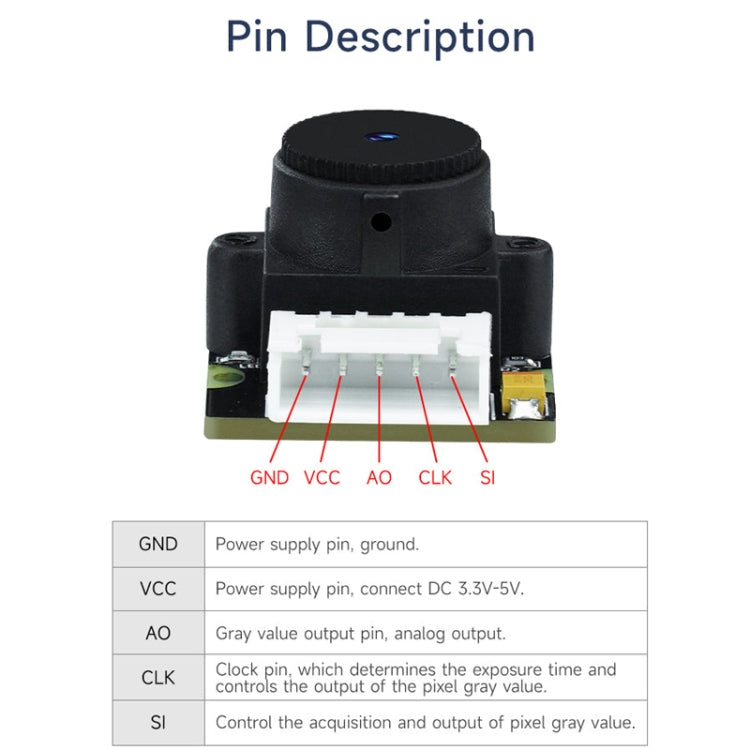

11. Onboard 5PIn-XH2.54 anti-reverse connection interface
12. Smart car tracking for higher speeds
13. Dimensions: 28x26x40 mm
14. Weight: 7.2 grams (module)
• Brand: Yahboom
• Compatibility: TSL1401 CCD Camera Module
• Material: Not specified
• Key feature: Linear array sensor
• Color/Variant: Not specified
• Intended use: Image processing applications
• Category: Robotics Accessories
1. Working voltage: DC 3.3V-5V
2. Output signal: 128x1 pixels
3. Response time: 100ms (test routine)
4. Equipped with lens: 56-degree distortion-free lens
5. Detection distance: within 5-40cm
6. Application occasions: STM32 single-chip CCD camera black line tracking, obstacle avoidance, multi-channel line inspection and other image processing electronic design
7. The linear CCD module can collect the image information of the ground line, and extract the characteristic information of the line through the image processing algorithm, so as to achieve higher precision line inspection
8. Stronger adaptability: linear CCD module line inspection is not limited by lighting conditions
9. Stronger scalability: Linear CCD module line inspection can adapt to different line inspection scenarios by changing image processing algorithms and parameters
10. The linear CCD module contains 128 linearly arranged photodiodes
11. Onboard 5PIn-XH2.54 anti-reverse connection interface
12. Smart car tracking for higher speeds
13. Dimensions: 28x26x40 mm
14. Weight: 7.2 grams (module)
Questions about features, compatibility, or warranty? Chat with our support team!
