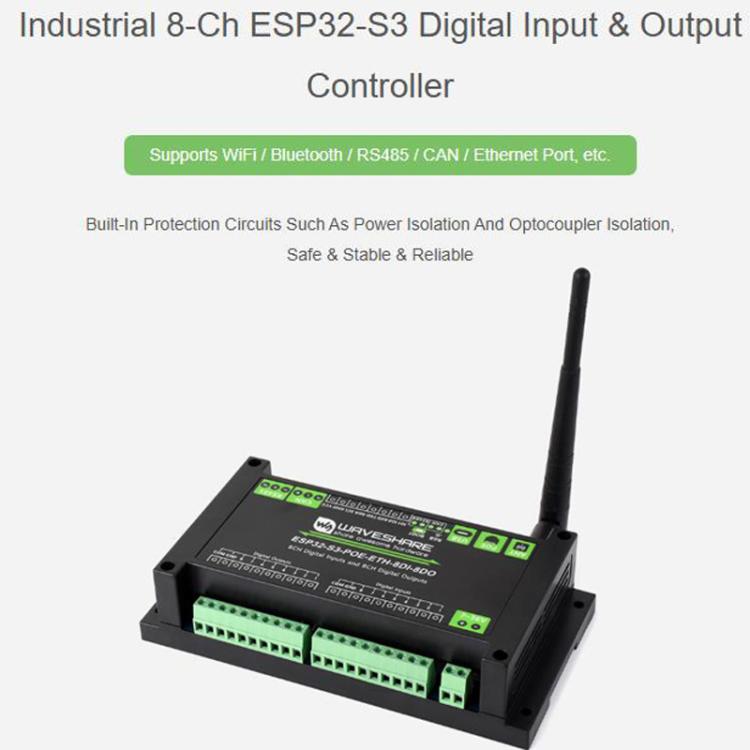

Waveshare ESP32-S3-POE-ETH-8DI-8DO Control Board With 8-Channel Digital Input & Output, Built-In Xtensa 32-Bit LX7 Dual-Core Processor
Waveshare ESP32-S3-POE-ETH-8DI-8DO Control Board With 8-Channel Digital Input & Output, Built-In Xtensa 32-Bit LX7 Dual-Core Processor
Em promoção
Esgotado
Pre-order
Preço normal
R 1,369.00
Preço normal
Preço de saldo
R 1,369.00
Preço unitário
por
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Descrição
• Product type: Mini PC Accessories
• Brand: WAVESHARE
• Compatibility: ESP32-S3
• Material: Durable construction
• Key feature: 8-channel digital input/output
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module
1. Based on the ESP32-S3 microcontroller, featuring an integrated Xtensa 32-bit LX7 dual-core processor with a maximum clock speed of 240MHz
2. Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication with outstanding RF performance

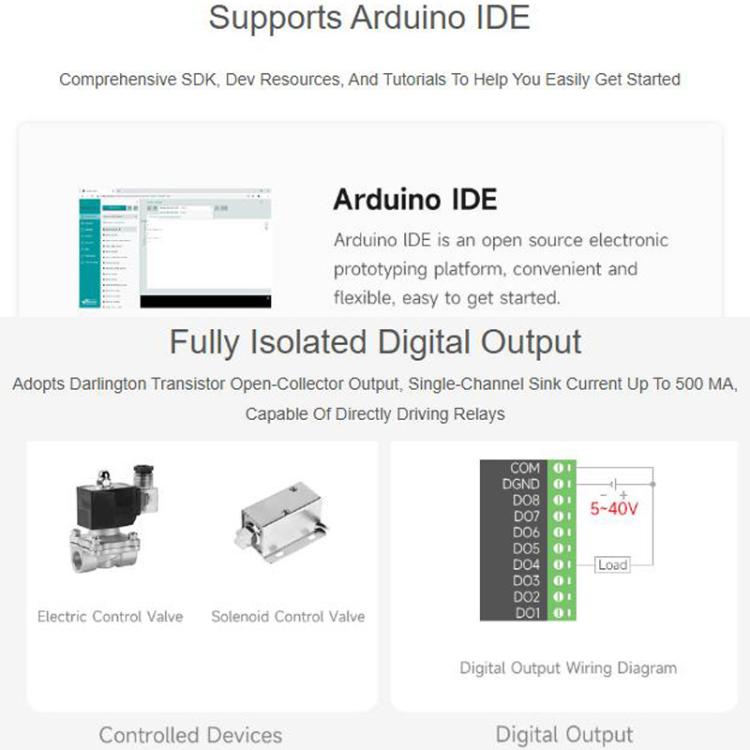

3. Output employs Darlington transistors with optocoupler isolation for enhanced drive capability, sink current up to 500mA, and built-in freewheeling diode protection

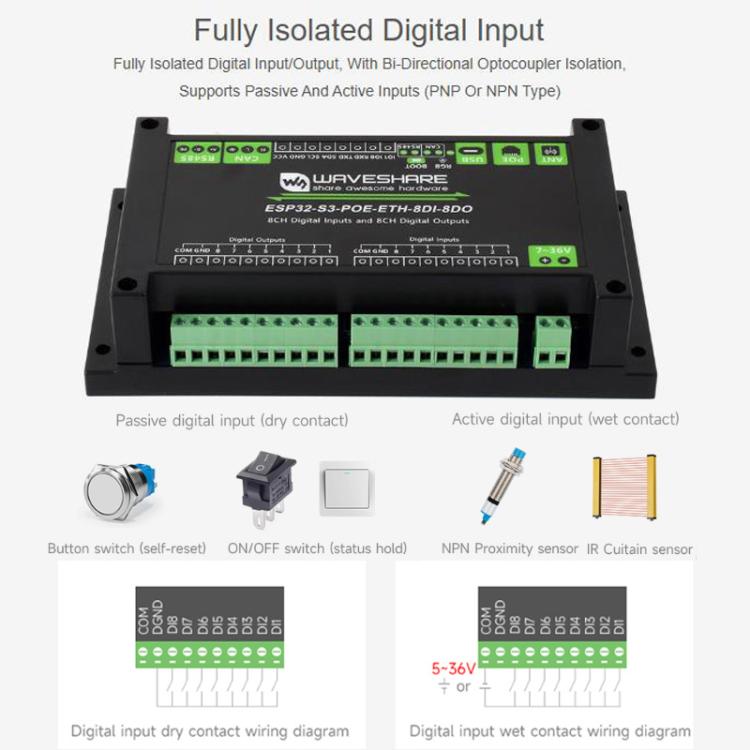

4. Digital inputs feature bidirectional optocoupler isolation, supporting both passive and active inputs; digital outputs support switch-input interlock control mode

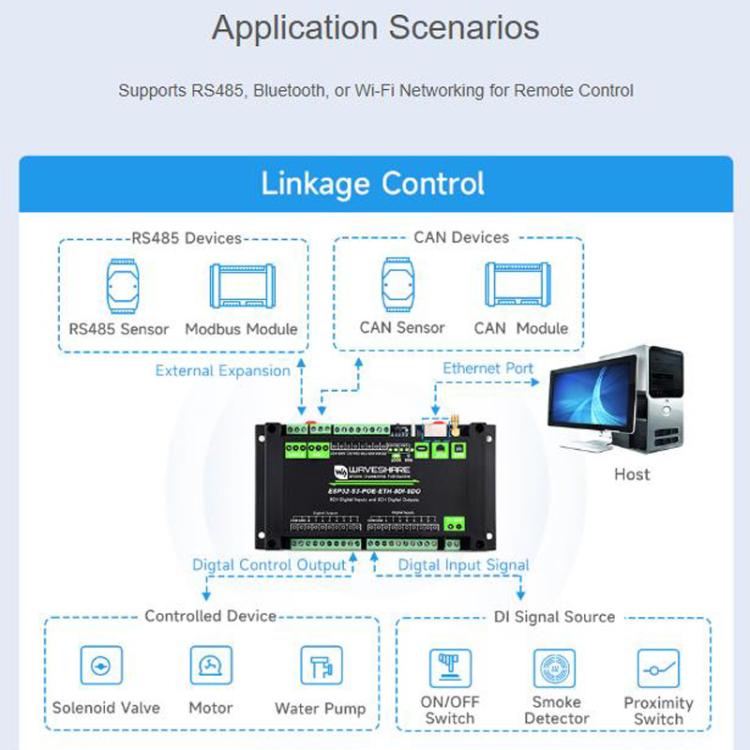

5. On-board isolated RS485 interface facilitates expansion with various RS485 Modbus industrial modules or sensors
6. On-board isolated CAN interface enables connection to diverse CAN devices
7. On-board header pins allow integration with additional peripherals
8. On-board USB Type-C port supports power delivery and debugging for convenient development
9. On-board terminal block power supply interface supporting 7V to 36V wide voltage range for industrial power applications
10. On-board RTC clock chip supporting scheduled tasks
11. On-board W5500 Ethernet chip providing 10/100Mbps network connectivity via SPI interface

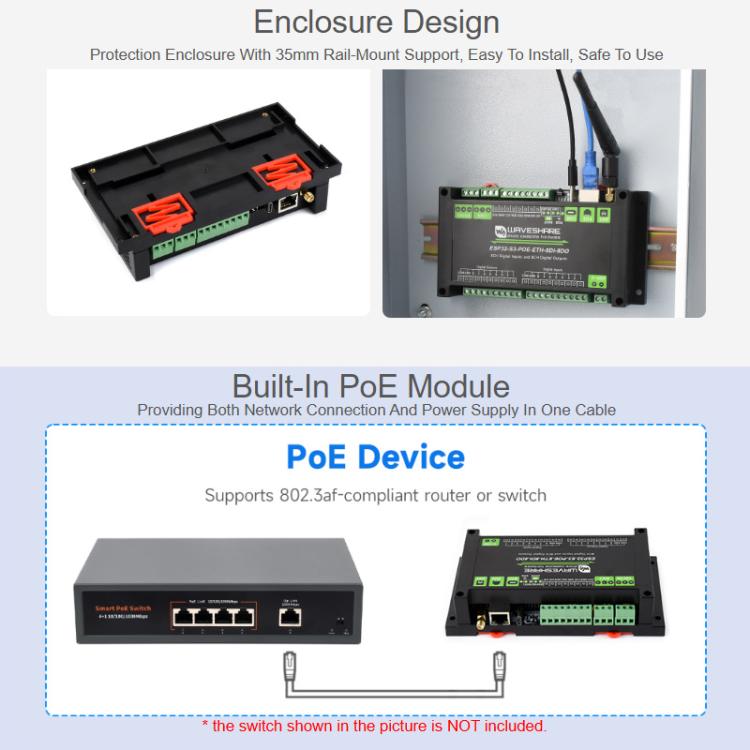

12. On-board PoE module implements Ethernet power delivery (compliant with IEEE 802.3af standard)

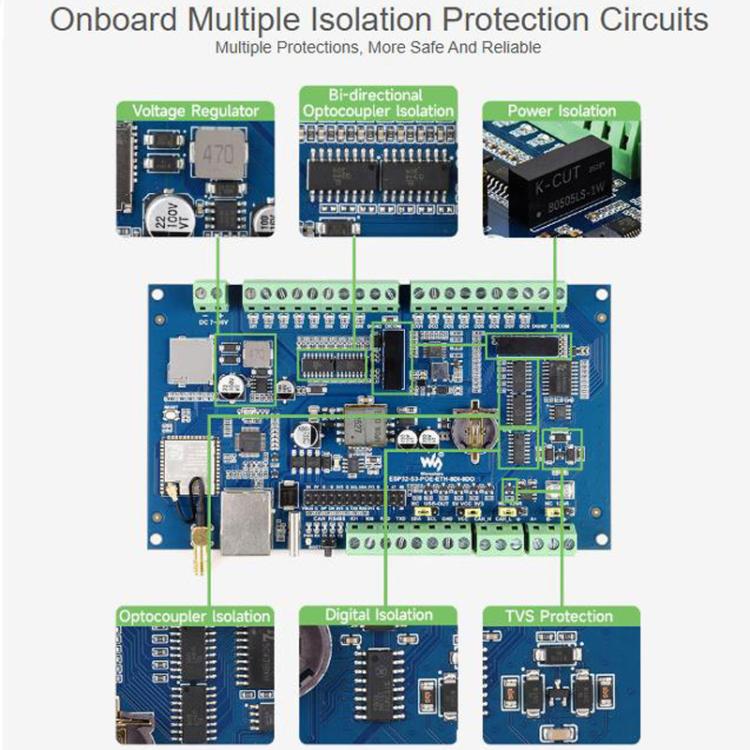

13. On-board optocoupler isolation prevents external circuit interference with control chips
14. On-board digital isolation prevents external signal interference with control chips
15. On-board integrated power isolation provides stable isolated voltage; isolated terminals require no additional power supply
16. Onboard Micro SD card slot for external SD card storage of images or files
17. Onboard buzzer, RGB indicator light, power indicator, RS485 transmit/receive indicator, and CAN indicator for easy monitoring of device operational status

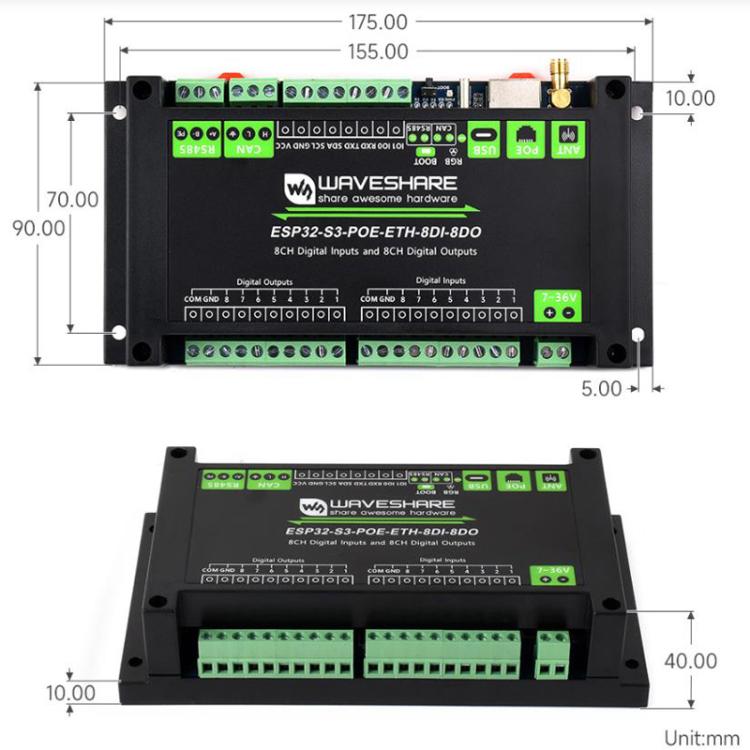

18. Rail-mount protective enclosure for convenient installation and enhanced safety
• Brand: WAVESHARE
• Compatibility: ESP32-S3
• Material: Durable construction
• Key feature: 8-channel digital input/output
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module
1. Based on the ESP32-S3 microcontroller, featuring an integrated Xtensa 32-bit LX7 dual-core processor with a maximum clock speed of 240MHz
2. Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication with outstanding RF performance
3. Output employs Darlington transistors with optocoupler isolation for enhanced drive capability, sink current up to 500mA, and built-in freewheeling diode protection
4. Digital inputs feature bidirectional optocoupler isolation, supporting both passive and active inputs; digital outputs support switch-input interlock control mode
5. On-board isolated RS485 interface facilitates expansion with various RS485 Modbus industrial modules or sensors
6. On-board isolated CAN interface enables connection to diverse CAN devices
7. On-board header pins allow integration with additional peripherals
8. On-board USB Type-C port supports power delivery and debugging for convenient development
9. On-board terminal block power supply interface supporting 7V to 36V wide voltage range for industrial power applications
10. On-board RTC clock chip supporting scheduled tasks
11. On-board W5500 Ethernet chip providing 10/100Mbps network connectivity via SPI interface
12. On-board PoE module implements Ethernet power delivery (compliant with IEEE 802.3af standard)
13. On-board optocoupler isolation prevents external circuit interference with control chips
14. On-board digital isolation prevents external signal interference with control chips
15. On-board integrated power isolation provides stable isolated voltage; isolated terminals require no additional power supply
16. Onboard Micro SD card slot for external SD card storage of images or files
17. Onboard buzzer, RGB indicator light, power indicator, RS485 transmit/receive indicator, and CAN indicator for easy monitoring of device operational status
18. Rail-mount protective enclosure for convenient installation and enhanced safety
