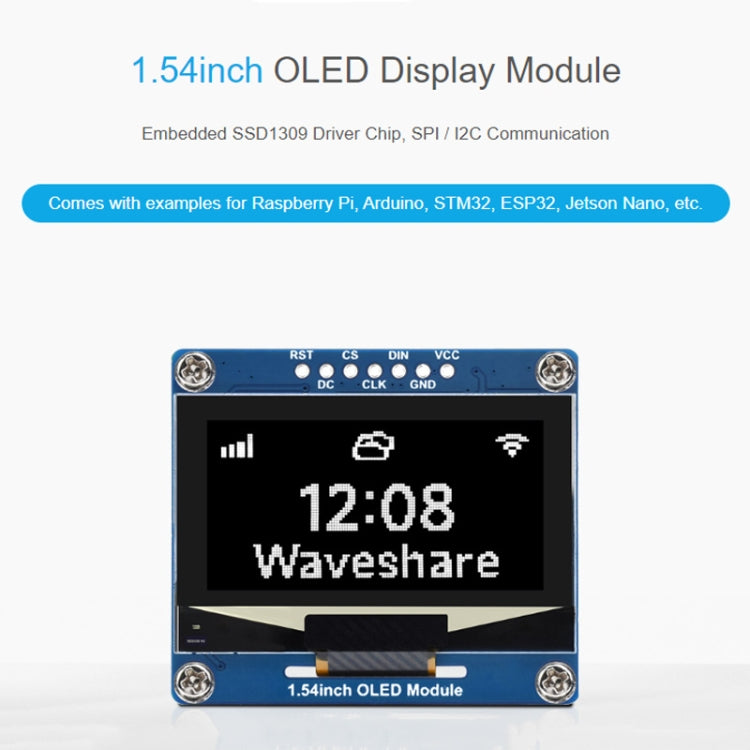

Waveshare 1.54 Inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(White)

Name: Waveshare 1.54 Inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(White)
Brand: Waveshare
SKU: TBD0576514401A
Availability: InStock

Em promoção Esgotado Pre-order

R 369.00

Envio calculado na finalização da compra.

Ships in 1-3 Days

Estimated delivery:

✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.

Shipping Included Overseas 6-13 bus days 6-Month Warranty 7-Day Returns

Descrição

• Product type: LCD & LED Display Module
• Brand: Waveshare

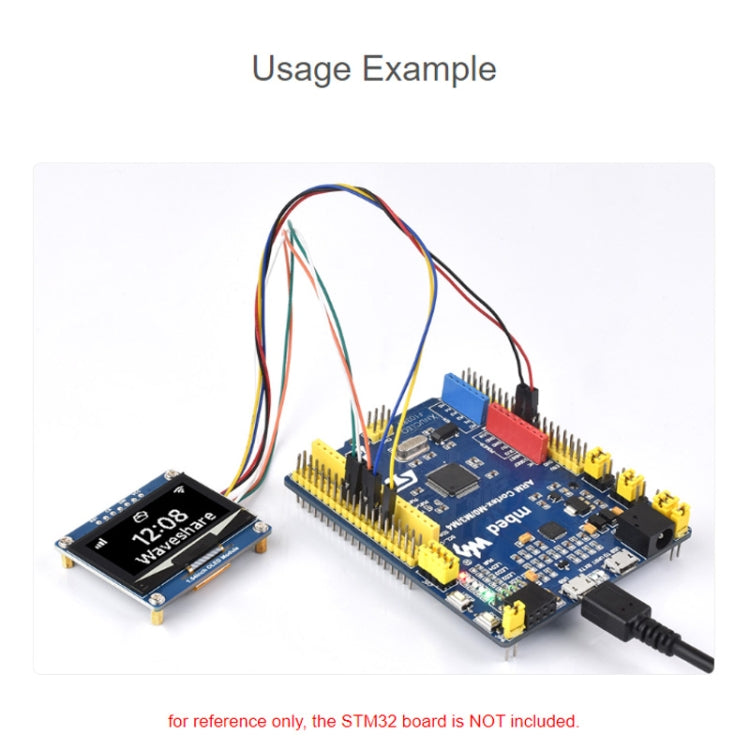

• Compatibility: Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano
• Material: OLED
• Key feature: SPI/I2C communication
• Color/Variant: White
• Intended use: Everyday use
• Category: Consumer Electronics

1. Onboard voltage converter, compatible with 3.3V/5V MCU
2. Using 4-wire SPI and I2C interface, better compatibility and fast data rate
3. Comes with online development resources (Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano examples)
4. Working voltage: 3.3V/5V
5. Display panel: OLED
6. Resolution: 128×64 pixels
7. Pixel size: 0.25 × 0.25 mm

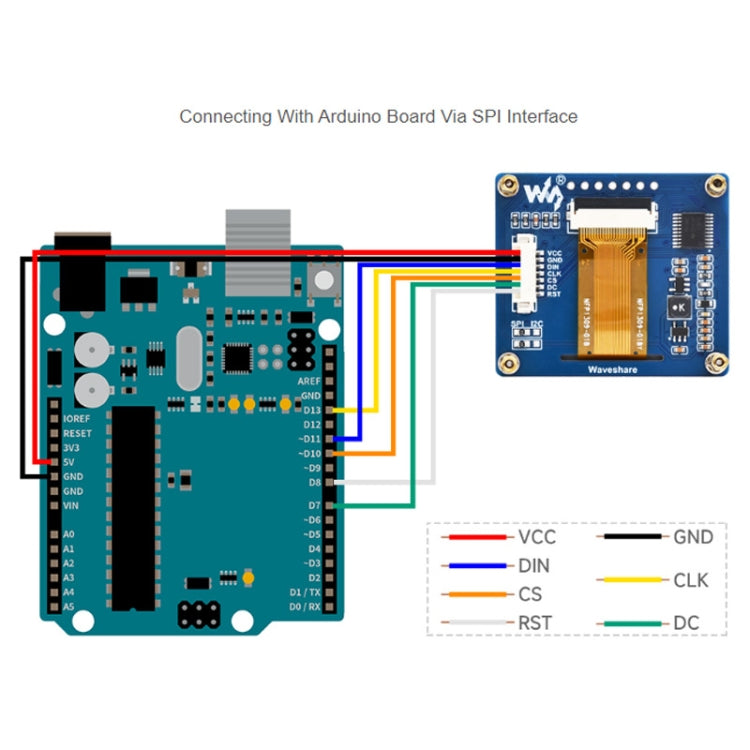

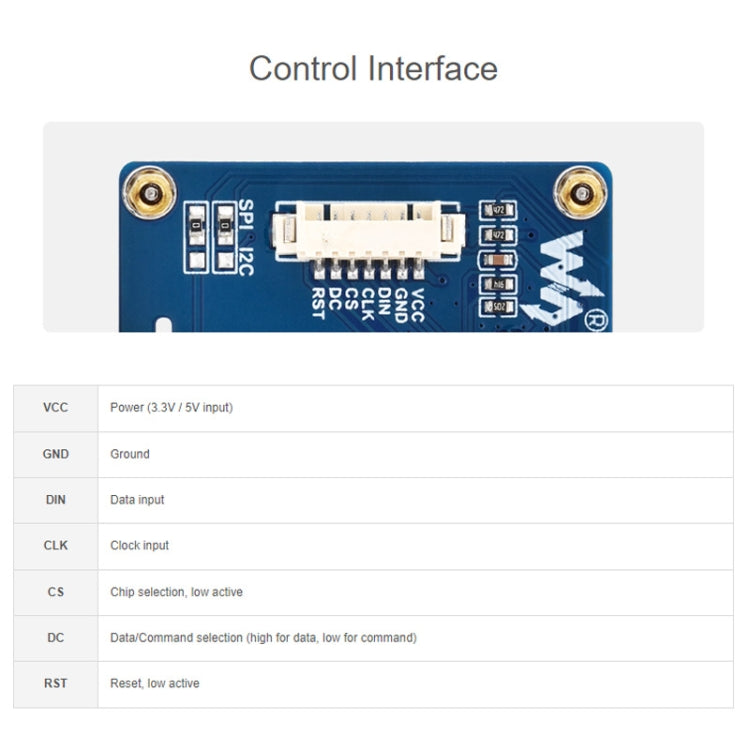

8. Communication interface: 4-wire SPI/I2C
9. Driver: SSD1309
10. Display size: 35.05 × 17.52mm
11. Module size: 43.00 × 37.50mm
12. Weight: 3 grams
Packing list:
-1.54-inch OLED module x 1
-GH1.25 7PIN cable x 1

Questions about features, compatibility, or warranty? Chat with our support team!
