Standalone Keypad Access Control System (7612)(Silver)
Standalone Keypad Access Control System (7612)(Silver)
Em promoção
Esgotado
Pre-order
Preço normal
R 769.00
Preço normal
Preço de saldo
R 769.00
Preço unitário
por
Envio calculado na finalização da compra.
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Não foi possível carregar a disponibilidade de recolha
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Descrição
• Product type: Access Controller
• Compatibility: Standalone Keypad Access Control System (7612)
• Material: Vandal resistant
• Key feature: Built-in proximity reader and keypad
• Color/Variant: Silver
• Intended use: External applications
• Category: Access Control System

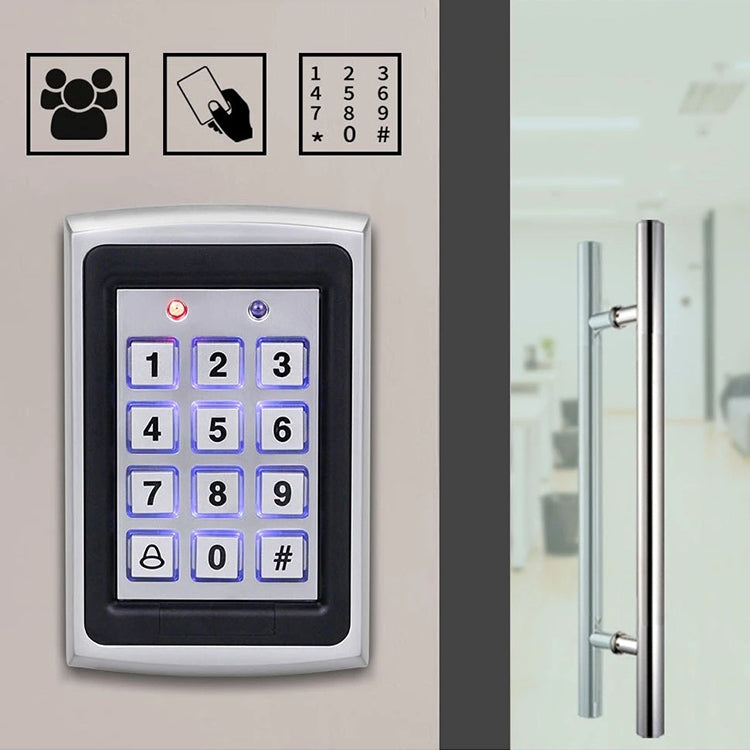

This is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via the use of proximity cards and/or pin codes. Technical Specification: 1. Operating Voltage: 12VDC From a Regulated Power Supply Input current: Standby: 40mA Not including attached devices Max: 130mA Not including attached devices 2. Outputs: Lock Strike Relay From C, 5A Auxiliary Relay From C, 5A LockStrike Control Output Collector Open Output (25mA) Auxiliary Control Output Collector Open Output (25mA) 3. Inputs: REX: N.O.,Dry Contact Auxiliary Input (In/Monitor): N.C.,Dry Contact in Monitor Mode: N.O.Dry Contact Input Mode 4. Built-in Proximity reader Read Range: 65mm Modulation: ASK at 125 kHz Compatible Cards: ALL 26-Bit EM Cards 5. Mechanical Characteristics Dimentions: 120L*76W*27Hmm Weight: 450g Range also depends on electrical environment and proximity to metal. Features: 1. Built-in Proximity Card Reader (125KHZ ASK Modulation) 2. Built-in Keypad for PIN Code entry 3. Auxiliary Input & Auxiliary Output 4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure 5. Internal Buzzer 6. Two Status/Programming Interface LEDS 7. Two Modes of Operation: Normal Mode; Secure Mode 8. Three User Levers: Normal User; Secure User; Master User 9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card 10. Code search Feature that helps make maintaining user codes easier. 11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies. 12. Programmable Siren Time. 13. Programmable Lock Strike Release Time.
• Compatibility: Standalone Keypad Access Control System (7612)
• Material: Vandal resistant
• Key feature: Built-in proximity reader and keypad
• Color/Variant: Silver
• Intended use: External applications
• Category: Access Control System
This is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via the use of proximity cards and/or pin codes. Technical Specification: 1. Operating Voltage: 12VDC From a Regulated Power Supply Input current: Standby: 40mA Not including attached devices Max: 130mA Not including attached devices 2. Outputs: Lock Strike Relay From C, 5A Auxiliary Relay From C, 5A LockStrike Control Output Collector Open Output (25mA) Auxiliary Control Output Collector Open Output (25mA) 3. Inputs: REX: N.O.,Dry Contact Auxiliary Input (In/Monitor): N.C.,Dry Contact in Monitor Mode: N.O.Dry Contact Input Mode 4. Built-in Proximity reader Read Range: 65mm Modulation: ASK at 125 kHz Compatible Cards: ALL 26-Bit EM Cards 5. Mechanical Characteristics Dimentions: 120L*76W*27Hmm Weight: 450g Range also depends on electrical environment and proximity to metal. Features: 1. Built-in Proximity Card Reader (125KHZ ASK Modulation) 2. Built-in Keypad for PIN Code entry 3. Auxiliary Input & Auxiliary Output 4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure 5. Internal Buzzer 6. Two Status/Programming Interface LEDS 7. Two Modes of Operation: Normal Mode; Secure Mode 8. Three User Levers: Normal User; Secure User; Master User 9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card 10. Code search Feature that helps make maintaining user codes easier. 11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies. 12. Programmable Siren Time. 13. Programmable Lock Strike Release Time.
Questions about features, compatibility, or warranty? Chat with our support team!
