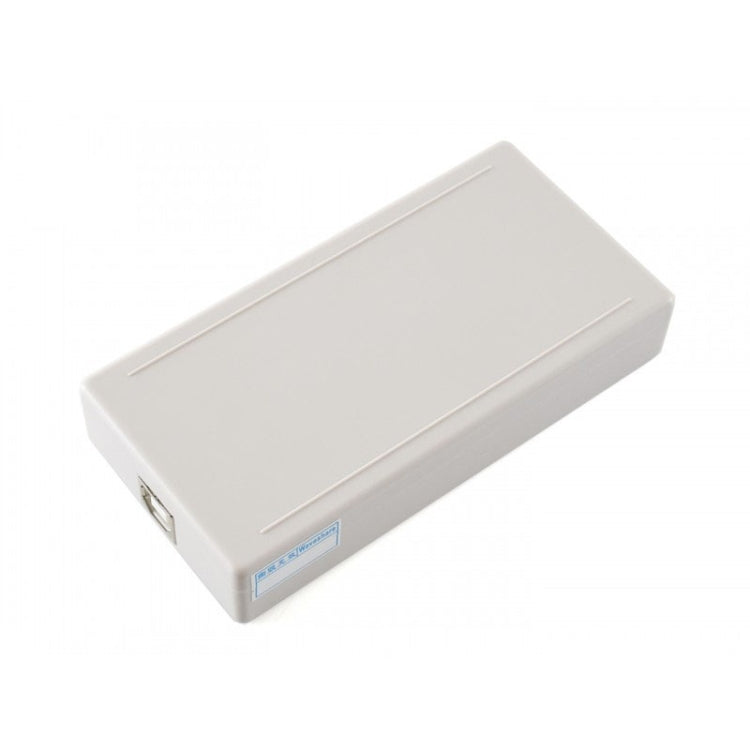

Platform Cable USB, Programmer & Debugger for Xilinx Devices
Platform Cable USB, Programmer & Debugger for Xilinx Devices
Em promoção
Esgotado
Pre-order
Preço normal
R 979.00
Preço normal
Preço de saldo
R 979.00
Preço unitário
por
Envio calculado na finalização da compra.
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Não foi possível carregar a disponibilidade de recolha
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Descrição
• Product type: FPGA Tools
• Brand: Waveshare
• Compatibility: Xilinx devices
• Material: USB
• Key feature: In-circuit configuration and programming
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module
USB compatible cable for in-circuit configuration and programming of all Xilinx devicesOverviewThe Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.Features- Performance1. Using CY7C68013A+FPGA solution, fully compatible with the original XILINX Platform Cable USB2. Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs3. Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices4. Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V5. Optional target clock frequency, supports XILINX software automatic frequency adjustment6. Firmware auto upgrade, its possible to support more new released software and devices7. Anti-static and multi-layers signal isolation, to protect the target and the programmer itself- Supported software1. Xilinx ISE2. iMPACT3. ChipScope4. Vivado- Supported devices1. Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.2. Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.3. Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.LED Status1. Red: USB connected2. Yellow: USB connected, and Vref (the target board) is poweredHow to Connect1. Connects to PC: Via USB interface2. Connects to target board: Platform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure below shows the header pinouts of the interfaces:Package contents1. Platform Cable USB main unit x12. JTAG adapter x13. USB cable x14. 8-pin header to 7-pin separated cable x15. 8-pin header to 6-pin header cable x16. 14-pin (2.54mm pitch) JTAG cable x17. 14-pin (2mm pitch) JTAG cable x18. 10-pin (2.54mm pitch) JTAG cable x1
• Brand: Waveshare
• Compatibility: Xilinx devices
• Material: USB
• Key feature: In-circuit configuration and programming
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Electronics Module
USB compatible cable for in-circuit configuration and programming of all Xilinx devicesOverviewThe Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.Features- Performance1. Using CY7C68013A+FPGA solution, fully compatible with the original XILINX Platform Cable USB2. Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs3. Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices4. Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V5. Optional target clock frequency, supports XILINX software automatic frequency adjustment6. Firmware auto upgrade, its possible to support more new released software and devices7. Anti-static and multi-layers signal isolation, to protect the target and the programmer itself- Supported software1. Xilinx ISE2. iMPACT3. ChipScope4. Vivado- Supported devices1. Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.2. Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.3. Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.LED Status1. Red: USB connected2. Yellow: USB connected, and Vref (the target board) is poweredHow to Connect1. Connects to PC: Via USB interface2. Connects to target board: Platform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure below shows the header pinouts of the interfaces:Package contents1. Platform Cable USB main unit x12. JTAG adapter x13. USB cable x14. 8-pin header to 7-pin separated cable x15. 8-pin header to 6-pin header cable x16. 14-pin (2.54mm pitch) JTAG cable x17. 14-pin (2mm pitch) JTAG cable x18. 10-pin (2.54mm pitch) JTAG cable x1
