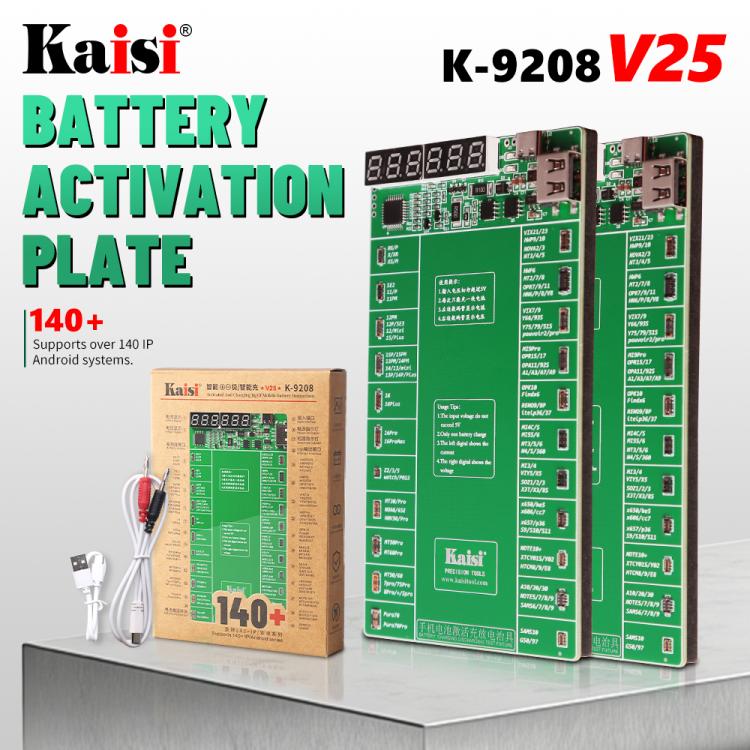

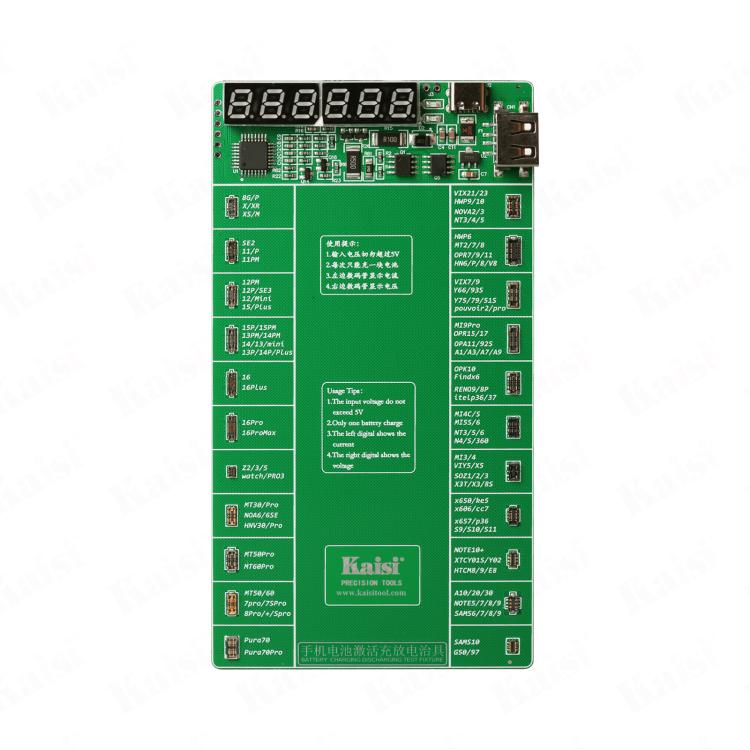

Kaisi K-9208 2025 Version Activated And Charging Jig Test Tools (Green)

1. Product Model: K-9208 (V25)
2. Product size :19 x 13.7 x 2.6cm

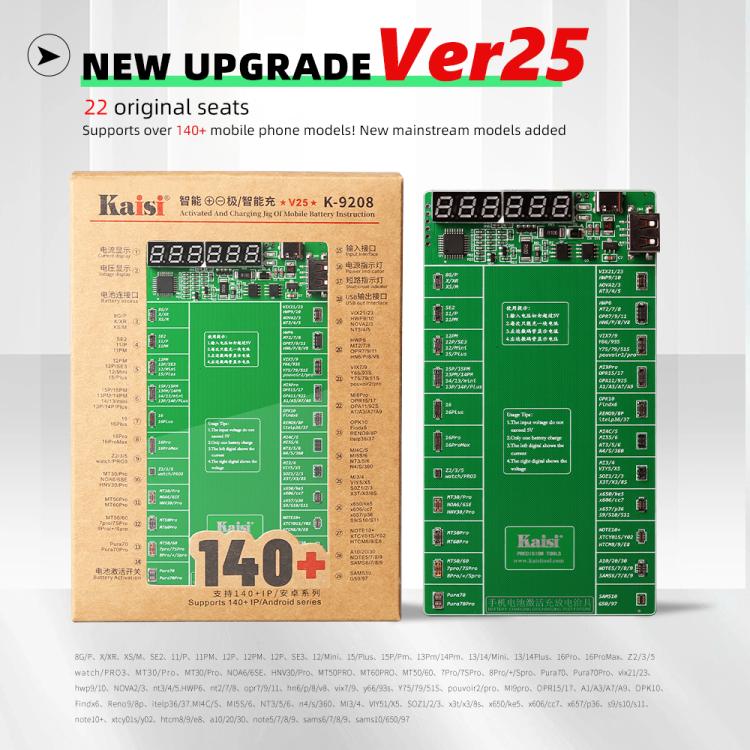

3. For iPhone 8 / 8 Plus / X / XS / XR / XS Max / 11 / 11 Pro / 11Pro Max / 12 / 12 mini / 12 Pro / 12 Pro Max / 13 / 13 mini / 13 Pro / 13 Pro Max / 14 / 14 Plus /14 Pro / 14 Pro Max / 15 / 15 Plus / 15 Pro / 15 Pro Max
4. For Huawei New models / Tecno some models
5. An intelligent chip is adopted to realize fast charging
6. With sleep wake-up function. Press the activate key to activate the battery during sleep. The battery can be used normally again
7. Support other charging equipment to avoid long-term occupation of electric energy meters and affecting maintenance work
8. Intelligent automatic identification of battery positive and negative poles. The positive and negative electrodes are connected in reverse, which does not burn the machine. It can be used directly after being fastened
9. Intelligent charging mode, in line with the lithium battery charging process
10. In the whole process of intelligent charging, without manual supervision, stop charging at full speed without worrying about the danger caused by excessive charging
11. The battery is fully charged with the automatic steering lamp, and the green lamp is used for real charging and is fully charged with the automatic steering lamp
12. Intelligently identify the short-circuit battery. In the case of a short-circuit, the red indicator lights up and turns off the power supply

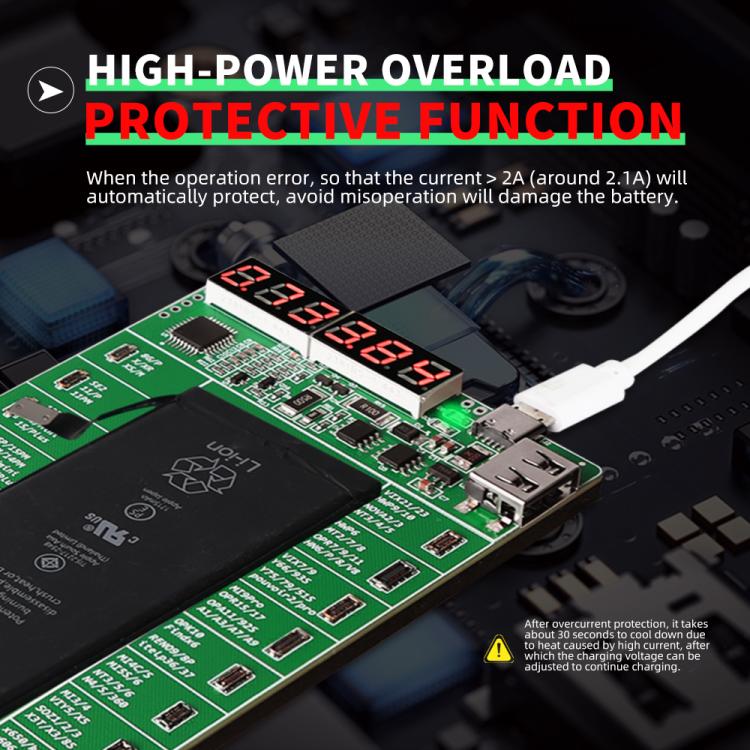

The fixture can work normally only when the input voltage is greater than the current battery voltage and the maximum charging current is 2A
13. Advanced design, safety, fast charging speed, and battery capacity can be charged to 100%, with accurate short-circuit judgment ability, shield all kinds of bad batteries for you, and greatly save your valuable time
14. According to the different conditions of the panel, the other functions are introduced respectively. If no power is connected, the following three situations will occur when the battery that needs to be charged is connected to the activation board:
A. All the indicators of the activation board are off: the battery voltage is lower than 2.5V, (The activation board needs to be higher than 2.5V input to start working)
B. Short circuit indicator light, indicating that the battery short circuit;

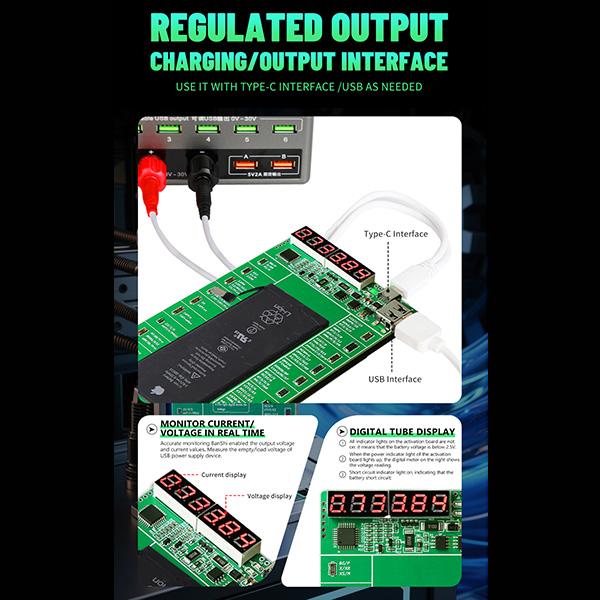

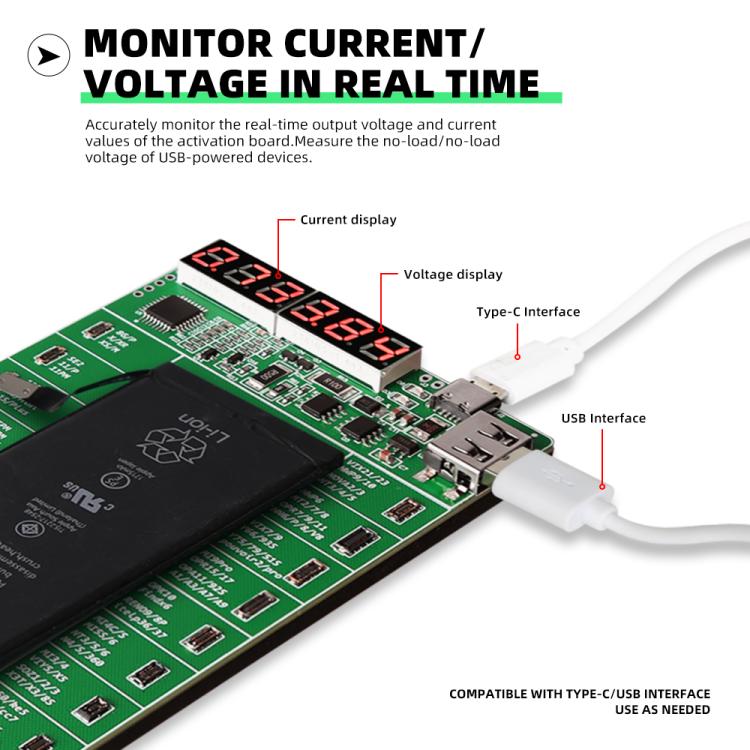

C. The activation board power indicator lights up: the digital meter on the right shows the voltage number (the voltage is the current battery voltage)
15. The charging port has been upgraded from USB to Type-C

Note: Input voltage should not exceed 5V, Otherwise it will damage the battery life, only one battery can be charged each time
