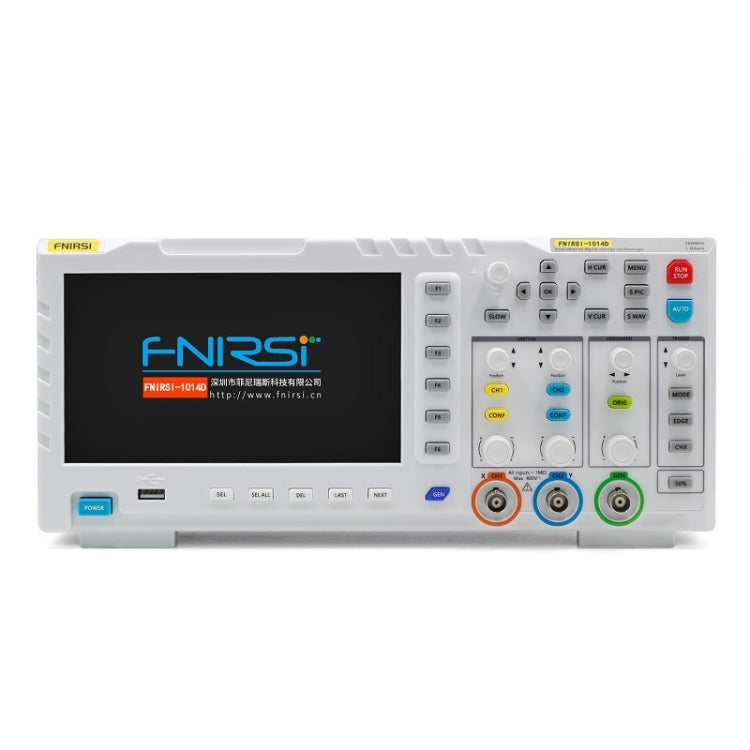

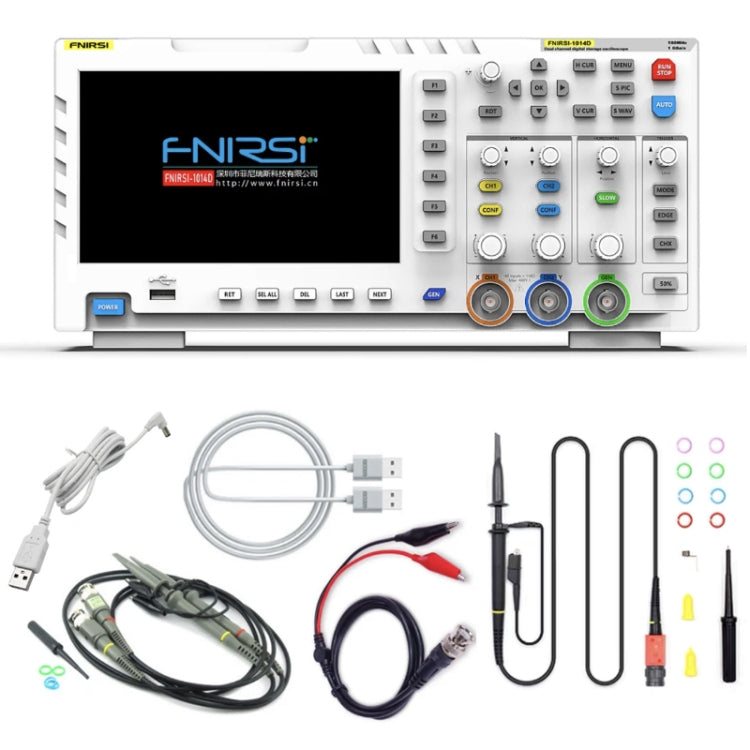

FNIRSI 1014D +P4100 Probe 2 in 1 Dual-channel 100M Bandwidth Digital Oscilloscope 1GS Sampling Signal Generator, US Plug

• Product type: Digital Multimeter
• Brand: FNIRSI
• Compatibility: FNIRSI 1014D
• Material: ABS
• Key feature: Dual-channel functionality
• Intended use: Everyday use
• Category: Test Equipment

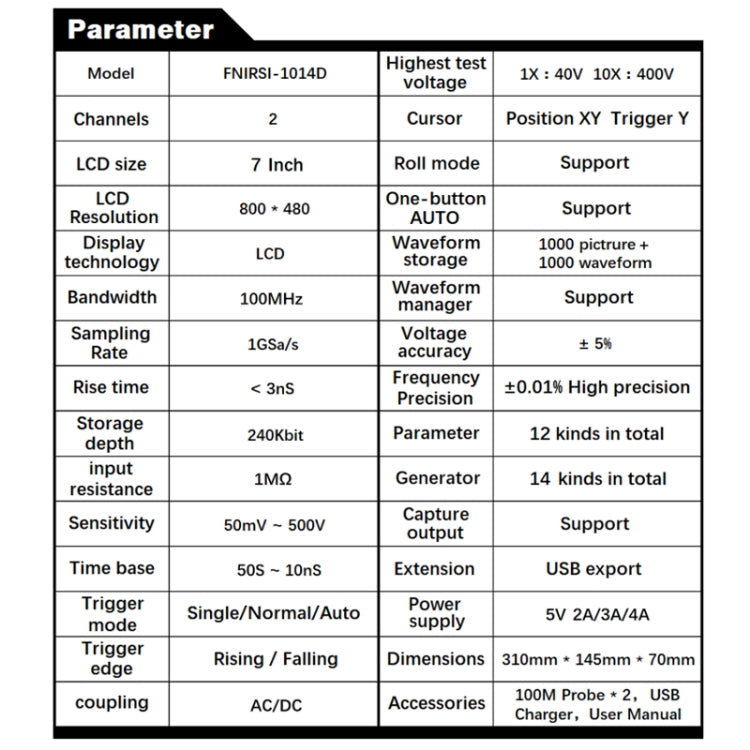

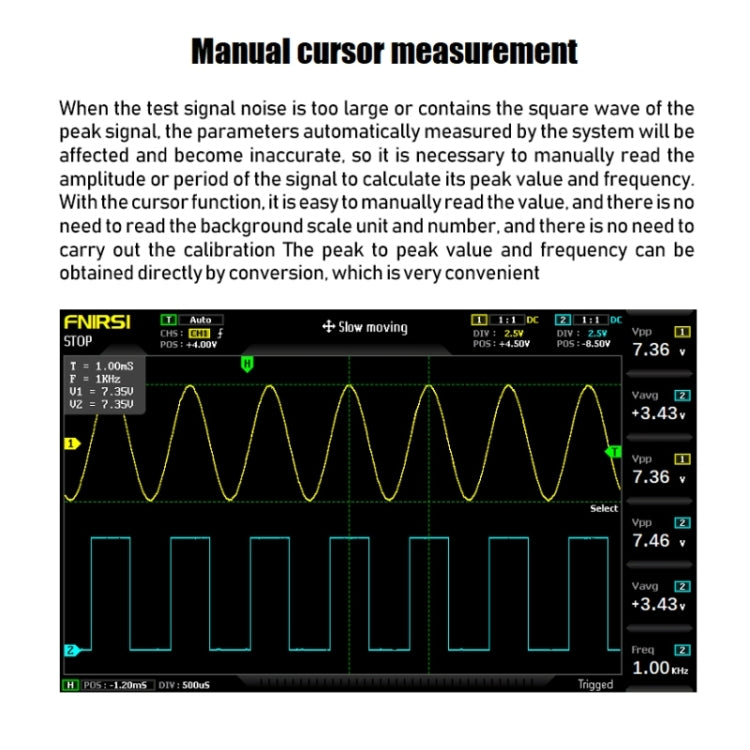

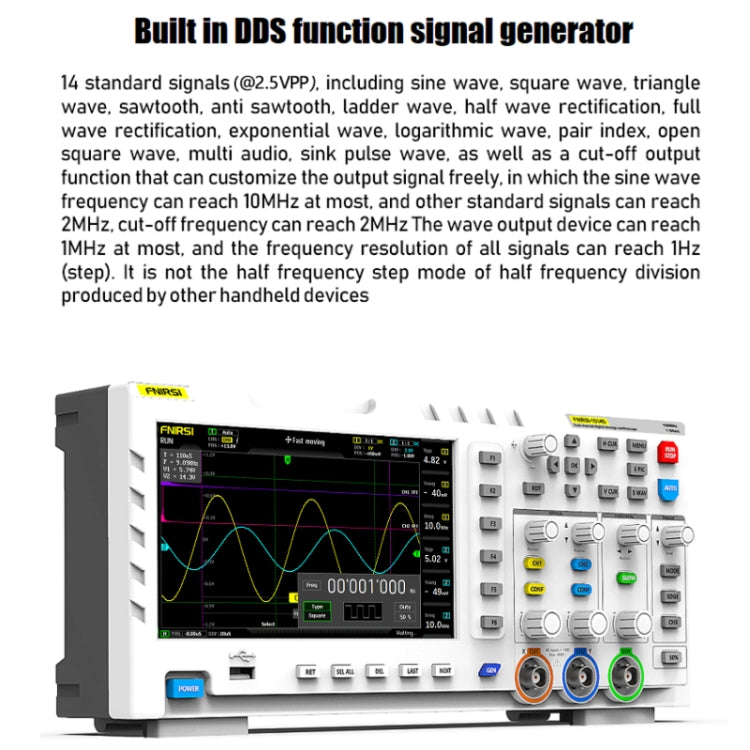

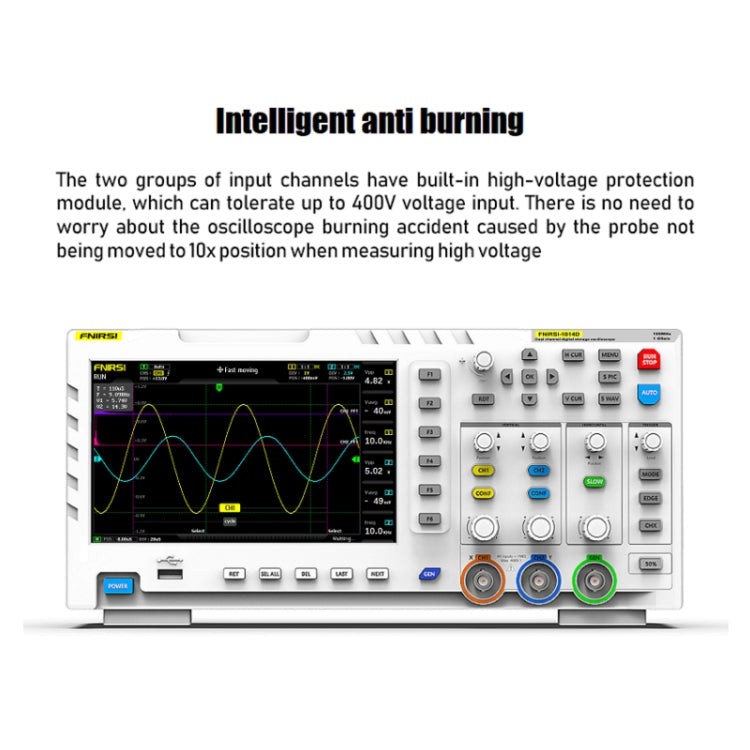

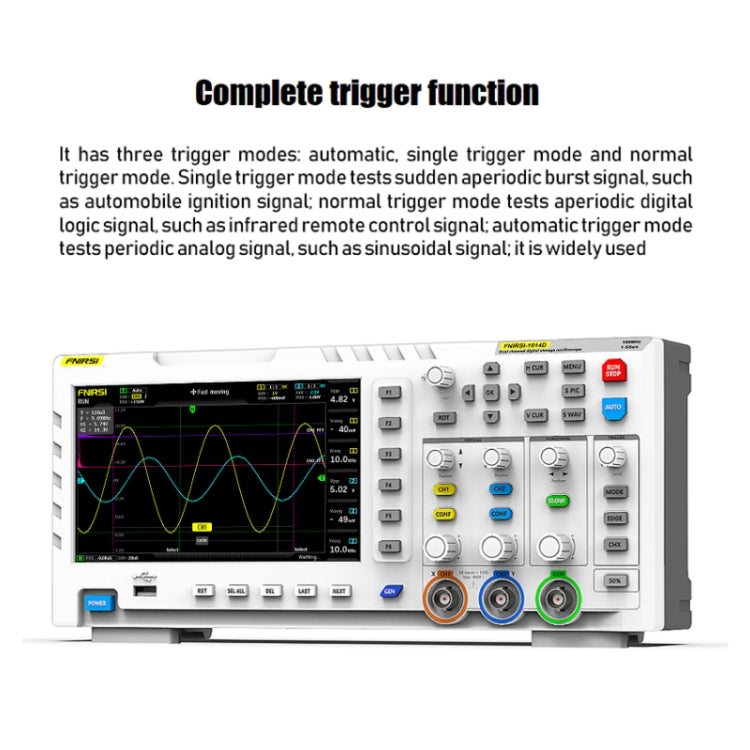

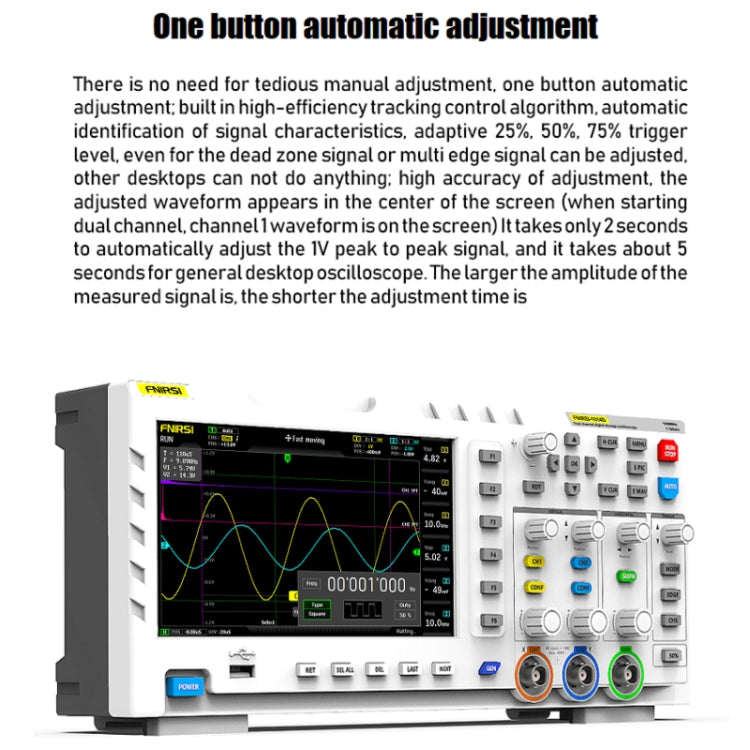

1. The oscilloscope has a real-time sampling rate of 1GSa/s and an analog bandwidth of 100MHz x 22. Complete trigger function (single/normal/automatic), both periodic analog signal and non-periodic digital signal can be used freely. 3. Built-in DDS function signal generator and the industry's original chopping output (@2.5vpp), all signal frequency steps are 1Hz, support 14 kinds of standard function signals and a customizable chopping signal, the chopping output device intercepts part or all signals. 4. The complex signal measured by the oscilloscope is used as the output signal of the signal generator, which can store up to 1000 custom cut-off signals. 5. The built-in high-voltage protection module can withstand continuous voltage up to 400V, so there is no need to worry about the oscilloscope burning accident caused by the probe not moving to the 10x position. 7. Large time base scrolling method, which can monitor slow level changes. 8. Equipped with an efficient one-key automatic display of measurement waveforms, without cumbersome adjustments. 9. 7-inch 800x480 resolution high-definition LCD display. 10. Cursor measurement function, when manually reading the amplitude and frequency parameters, there is no need to read the background scale unit and quantity, no need to convert, and directly obtain the peak-to-peak value and frequency. Very convenient screen capture and waveform storage function. 10. Built-in 1GB storage space, can store 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, save the current waveform with one key. 11. Powerful waveform image manager, supports thumbnail browsing, viewing, viewing details, page turning, deletion, and waveform zooming in, zooming out, moving, etc., which is convenient for secondary analysis. 12. The fuselage is equipped with a USB interface, which can be connected to a computer to realize the sharing of screenshots and pictures of itself, which is convenient for secondary analysis. 13. Graphical display function, which can compare and judge the amplitude, frequency and phase of two groups of signals. 14. The FFT viewing function can estimate the harmonic components of the signal. 15. Built-in DDS signal generator, supports 12 kinds of function signals. 16. For high intelligent decoding algorithm, the encoder has unlimited life, intelligent anti-burn function, 1X can withstand 400V withstand voltage. 17. With 100MHz x 2 analog bandwidth and @1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz). 18. High measurement voltage range: 1X can measure 0~40V, 10X can measure 0~400V. 19. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period. 20. Cursor measurement function: convenient for manual measurement of period, frequency and voltage. 21. Trigger function (single, normal, automatic), freeze waveform display at any time (pause function). 22. With screen brightness adjustment function and background grid brightness adjustment function, easy to carry.
