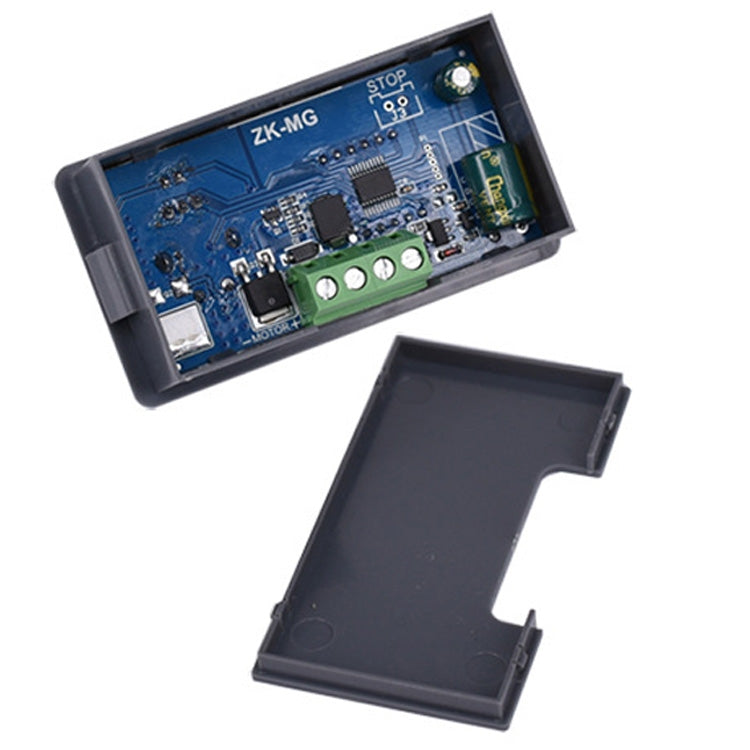

ZK-MG 5-30V High Power PWM DC Motor Governor Digital Display Encoder

The ZK-MG 5-30V High Power PWM DC Motor Governor is a digital display encoder designed to control the speed of DC motors. It is suitable for applications requiring precise motor speed adjustments, such as robotics and automation projects.

• Product Type: Other Accessories
• Compatibility: DC 5-30V motors
• Material: Durable construction
• Color/Variant: Standard 5135 instrument shell
• Working Voltage: DC 5-30V, input reverse polarity protection
• Rated Current: 5A, up to 15A
• Power: Up to 150W
• Working Frequency: 1-99KHz adjustable, 1KHz step, default frequency 20KHz
• Duty Cycle: 0-100 percent, 1 percent step
• Hole Size: Approximately 7.5x3.9cm
• Appearance Size: Approximately 7.9x4.3x2.6 cm
• Weight: Approximately 41g
• Features: Start and stop button, external switch control, motor soft start function, adjustable duty cycle and operating frequency, digital encoder knob for speed adjustment
• Installation: Easy to install with standard 5135 instrument shell
