Description

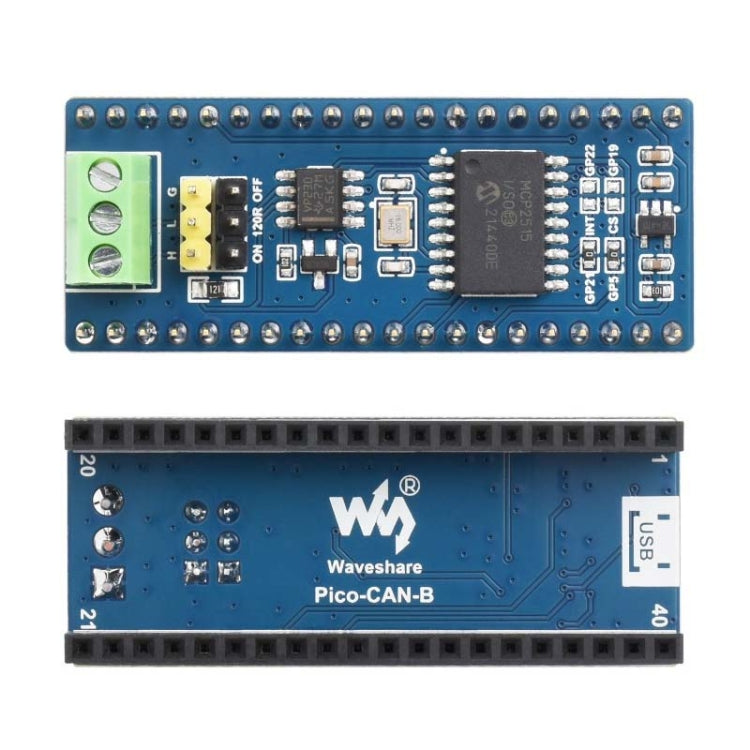

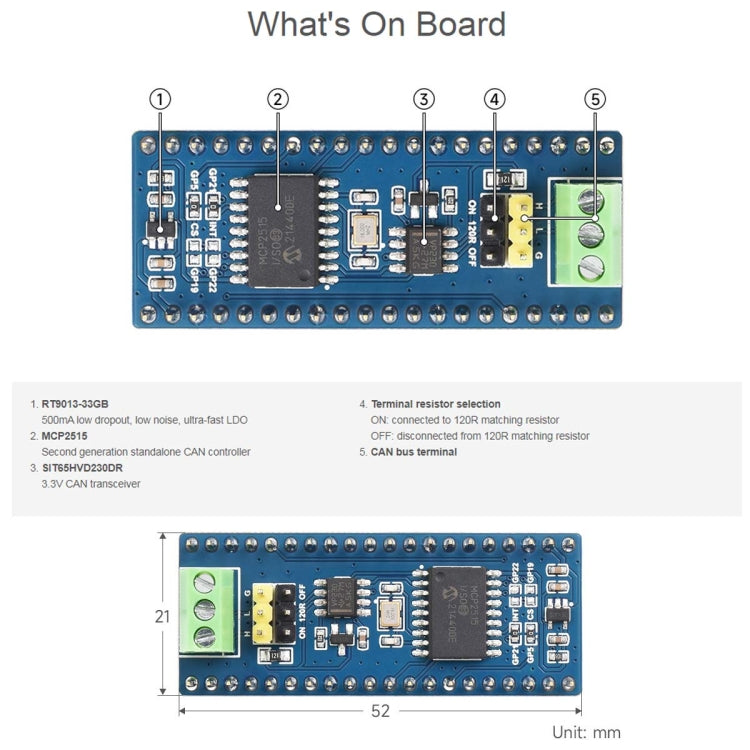

The Waveshare CAN Bus Module is an expansion module designed for the Raspberry Pi Pico. It enables reliable remote communication through the CAN function using an SPI interface.
- Product Type: Module Expansion Accessory
- Compatibility: Raspberry Pi Pico
- Operating Voltage: 3.3V - 5V
- CAN Controller: MCP2515
- CAN Transceiver: SIT65HVD230DR
- Communication Bus: SPI
- Baudrate: 5K - 1000Kbps
- Size: 52 x 21 mm
- Includes online development resources and manual with C/C++ and MicroPython examples
