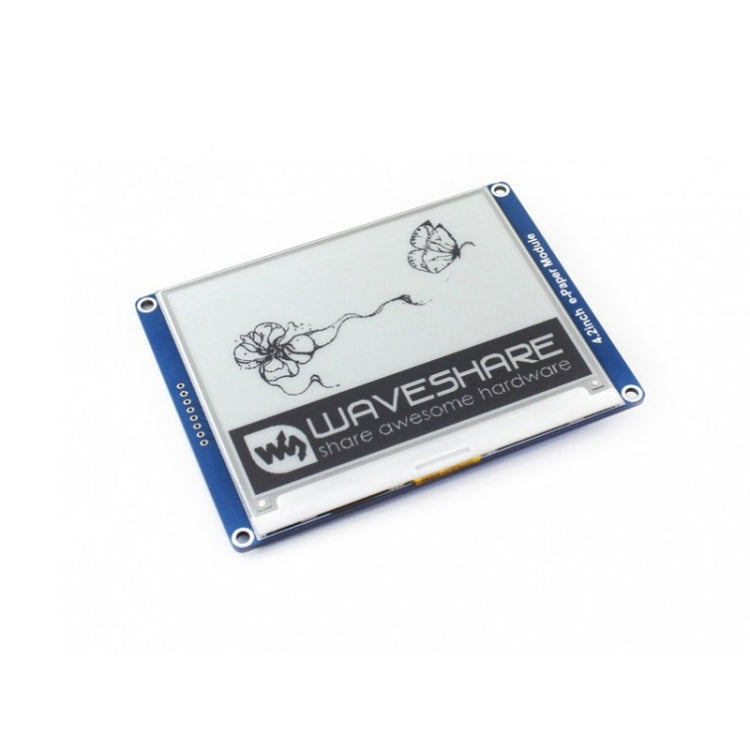

Waveshare 4.2 inch 400x300 E-Ink Display Module, SPI Interface
Waveshare 4.2 inch 400x300 E-Ink Display Module, SPI Interface
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from International Fulfillment Center • Import tax and duties included
Ships from International Fulfillment Center • Import tax and duties excluded
Ships from International Fulfillment Center • Import tax and duties excluded
Description
The Waveshare 4.2 inch E-Ink Display Module is designed for low power consumption applications. It is suitable for use in shelf labels and industrial instruments where a clear display is required without continuous power.
- Product Type: E-Ink Display Module
- Compatibility: Raspberry Pi, Arduino, Nucleo
- Material: Electronic components
- Display Size: 84.8mm × 63.6mm
- Resolution: 400 × 300
- Display Color: Black and White
- Grey Level: 299
- Viewing Angle: >170 degrees
- Operating Voltage: 3.3V~5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline Dimension: 103.0mm × 78.5mm
- Full Refresh Time: 4 seconds
- Refresh Power: 26.4mW (typical)
- Standby Power: <0.017mW
- Weight: 0.052 kg
- Onboard Voltage Translator: Compatible with 3.3V/5V MCUs

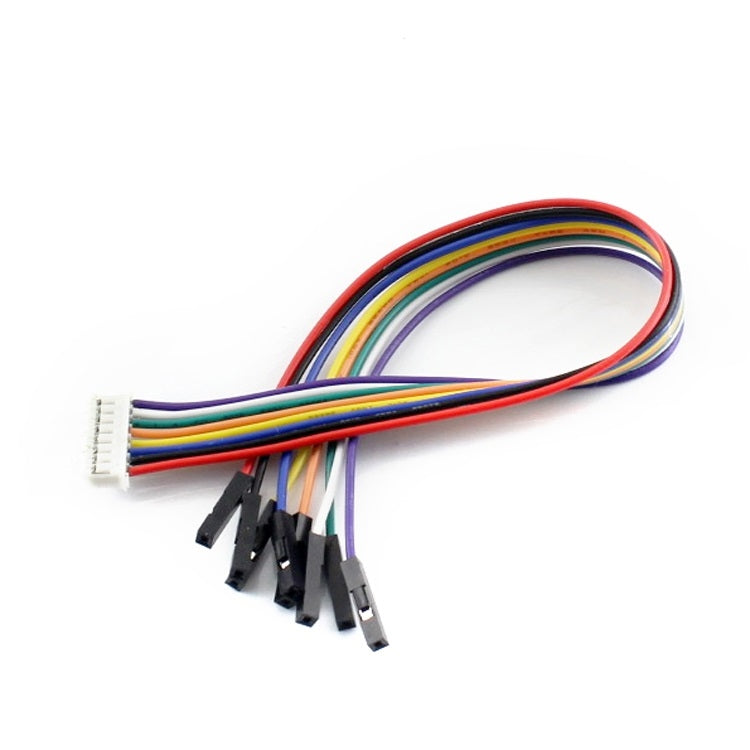

- Package Contents: 4.2inch e-Paper Module x1, PH2.0 20cm 8Pin x1
- Key Feature: Ultra low power consumption
- SPI Interface: For connecting with controller boards
- Development Resources: Includes manual and examples for Raspberry Pi/Arduino/STM32
