Waveshare 2.13 inch 212x104 Pixel Flexible E-Paper (D) E-Ink Raw Display Panel
Waveshare 2.13 inch 212x104 Pixel Flexible E-Paper (D) E-Ink Raw Display Panel
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from China (Standard) • Import tax and duties included
Ships from China (Standard) • Import tax and duties excluded
Ships from Hong Kong (Direct) • Import tax and duties excluded
Description

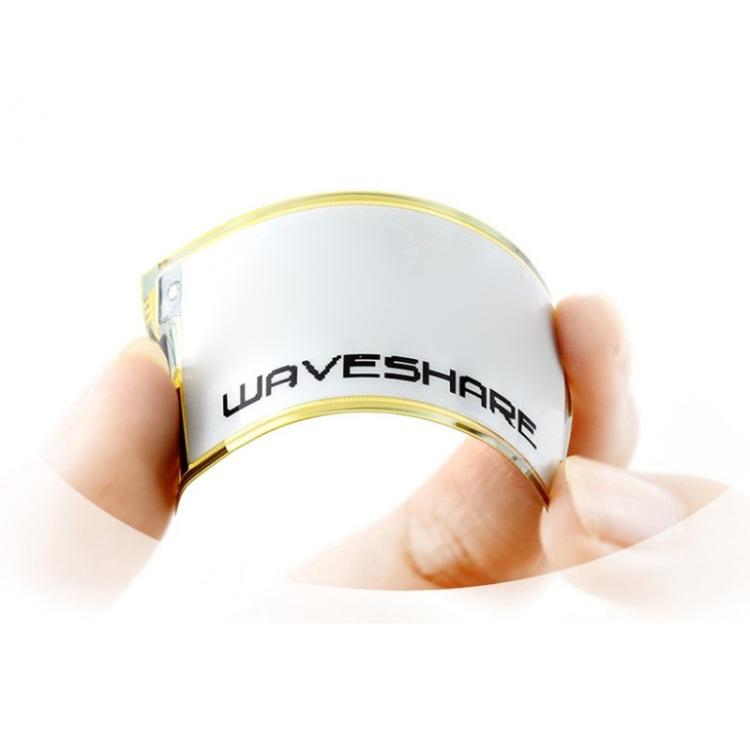

The Waveshare 2.13 inch 212x104 Pixel Flexible E-Paper (D) E-Ink Raw Display Panel is a flexible E-Ink display module designed for curved surface applications. It is suitable for use in industrial instruments and smart wearable devices where a lightweight and low power consumption display is required.
- Product Type: Display Module
- Compatibility: Raspberry Pi
- Material: E-Ink
- Display Size: 2.13 inches
- Resolution: 212 x 104 pixels
- Display Color: Black and White
- Grey Level: 29
- Dot Pitch: 0.229 x 0.228 mm
- Outline Dimensions: 59.2 mm x 29.2 mm x 0.3 mm
- Operating Voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 2 seconds
- Refresh Power: 26.4 mW (typical)
- Standby Power: <0.017 mW
- Viewing Angle: >170 degrees
- Key Feature: Flexible design
- Intended Use: Curved surface applications
- Development Resources: Includes driver board schematic and examples for Raspberry Pi/Arduino/STM32
