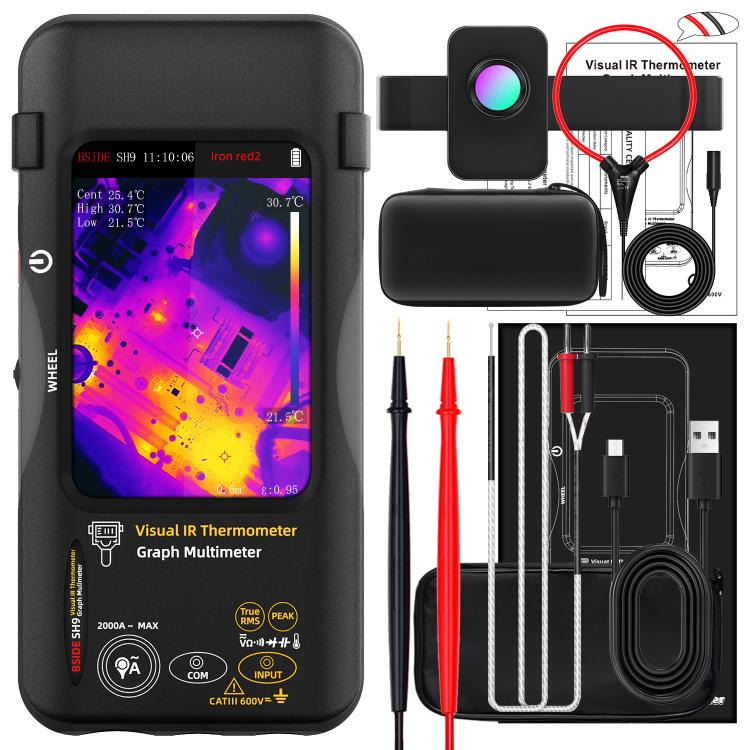

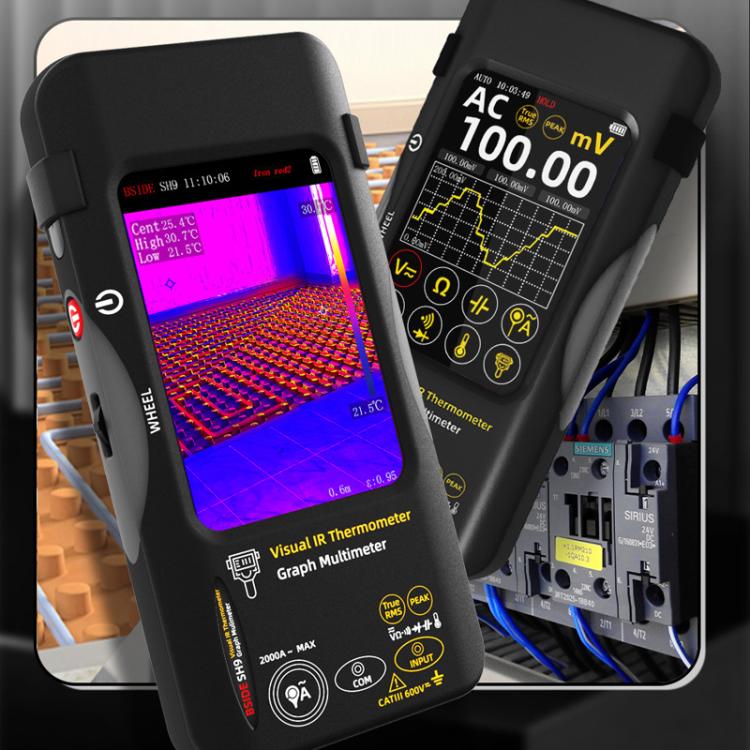

Standard+Macro Lens+Flexible Coil BSIDE SH9 Infrared Thermal Imaging Multimeter Touchscreen High-Definition Thermal Imaging Thermometer Electrical Floor Heating Inspection

Thermal imaging:1. Sensor type: Vanadium oxide (VOx) microbolometer2. Response band: 8-14um3. Thermal image resolution: 320 x 428 pixels4. Noise equivalent temperature difference (NETD): less than or equal to 50 mK (@25 degrees Celsius, F 1.0)5. Field of view (FOV): 50.0 degrees (H) x 37.2 degrees (V) 163.6 degrees (D)6. Spatial resolution (IFOV): 8.89 mrad7. Frame rate: 25Hz8. Preview mode: thermal imaging, fusion, visible light9. Temperature measurement focal length: about 0.3m-3m adjustable10. Temperature measurement range: -20 - 550 degrees Celsius11. Temperature measurement accuracy: +/-2 degrees Celsius or +/-2 degrees Celsius of reading (the larger value of reading)12. Temperature measurement unit: Celsius, Fahrenheit, Kelvin13. Temperature measurement resolution: 0.1 degrees Celsius14. Emissivity: 0.01-1.00 adjustable15. Temperature measurement display: center point temperature measurement, high and low temperature tracking16. Temperature alarm: screen font color alarm17. Display: 3.98 inch TFT capacitive touch screen18. Display resolution: 320 x 48019. Color palette: Iron Red 2, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue20. Image storage: built-in memory card21. Number of image files: 15,00022. Image format: BMP picture23. Shock/Vibration: GB/T2423.5-2019, GB/T2423.10-200824. Electromagnetic Compatibility (EMC): GBIT17799.2, GB17799.3-201225. Focusing mode: Focus-free26. Hardware interface: Type-C27. Battery type: Rechargeable lithium battery (3.7V/2500mAh)28. Battery working time: more than 5H @25 degrees Celsius29. Charging time: less than 3h@25 degrees Celsius30. Boot speed: about 3 seconds to boot31. Automatic shutdown: off (default) (optional 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, off)32. Working temperature: -20 - 50 degrees Celsius33. Storage temperature: -40 - 70 degrees Celsius34. Storage humidity: 25%-40%RH (non-condensing)35. Operating humidity: less than 85%RH (non-condensing)36. Dimensions: about 16.9 x 8.1 x 2.68cm37. Weight: about 274.3gMultimeter:1. DC voltage (V) range/resolution: 2.0000V/0.0001V, 20.000V/0.001V, 200.00V/0.01V, 1000V/0.1V2. AC voltage (V) range/resolution: 2.0000V/0.0001V, 20.000V/0.001V, 200.00V/0.01V, 750V/0.1V3. DC/AC voltage (mV) range/resolution: 20.000mV/0.001mV, 200.00mV/0.01mV4. Resistance range/resolution: 200.00ohm/0.01ohm, 2.0000kohm/0.0001kohm, 20.000kohm/0.001kohm, 200.00kohm/0.01kohm, 2.0000megohm/0.0001megohm, 20.000megohm/0.001megohm, 200.00megohm/0.01megohm5. Capacitance range/resolution: 999.99nF/0.01nF, 9.999uF/0.001uF, 999.99uF/0.01uF, 99.999mF/0.001mF6. Flexible current clamp range/resolution: 200.0A/0.1A7. AC current range/resolution: 2000A/1A8. Temperature range/resolution: -20 - 1300 degrees Celsius/1 degree Celsius, -4 - 2372 degrees Fahrenheit/1 degree Fahrenheit9. Function: diode, on/offFeatures:1. Widely used in medical/firefighting/archaeology/transportation/agriculture/geology/energy/electronic manufacturing and other fields, it is an ideal choice for electricians and maintenance technicians2. The image is clearer, automatically captures the target temperature value, and multiple scenes display the effect center point, highest temperature point, lowest temperature point, and accurate temperature measurement3. 3.98-inch TFT capacitive touch screen, clearer HD display, more convenient operation, easy to read every measurement data, avoid errors4. High accuracy, rich functions, covering all kinds of test needs from basic to advanced, meeting various work scenarios5. Type-C interface, charging or data transmission is more convenient6. Gear toggle button, switch and adjust at will7. Full-screen temperature measurement, high-precision emissivity8. Built-in memory card, data storage and export9. Lightweight, more convenient to carry10. Sturdy body, wear-resistant and durable11. Three preview modes of thermal imaging/fusion/visible light12. Low light + thermal imager dual-channel dual light fusionStandard packing list:- Thermal imaging multimeter x 1- Data cable x 1- Manual x 1- Thermocouple x 1- Storage bag x 1- Special tip probe x 1Note: flexible coil red/black is random delivery
