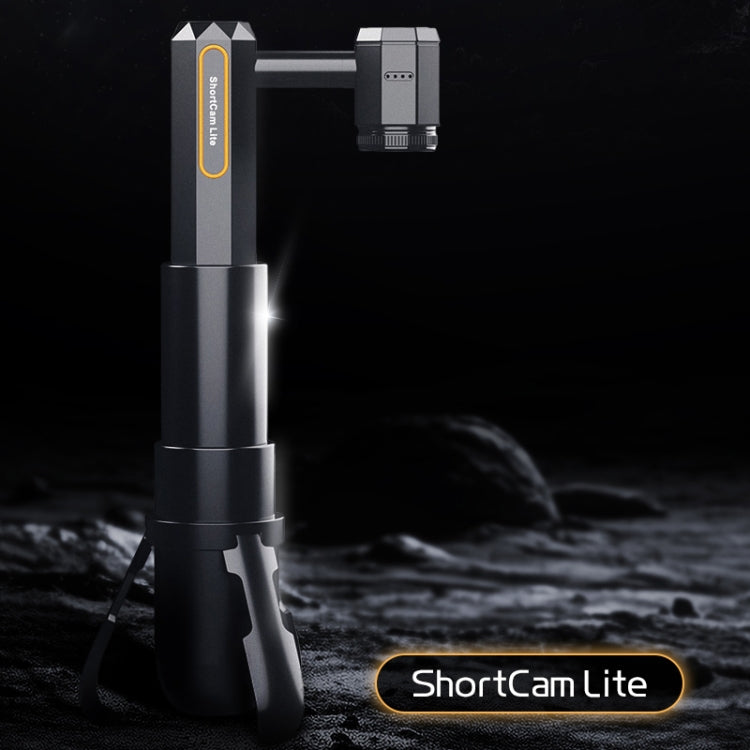

ShortCam Lite Infrared Thermal Camera PCB Diagnostic Tool for Phone Computer Repair

• Product type: Others
• Compatibility: Phones, Computers
• Material: Not specified
• Key feature: High-definition thermal imaging
• Color/Variant: Not specified
• Intended use: Repair diagnostics
• Category: Repair Tools

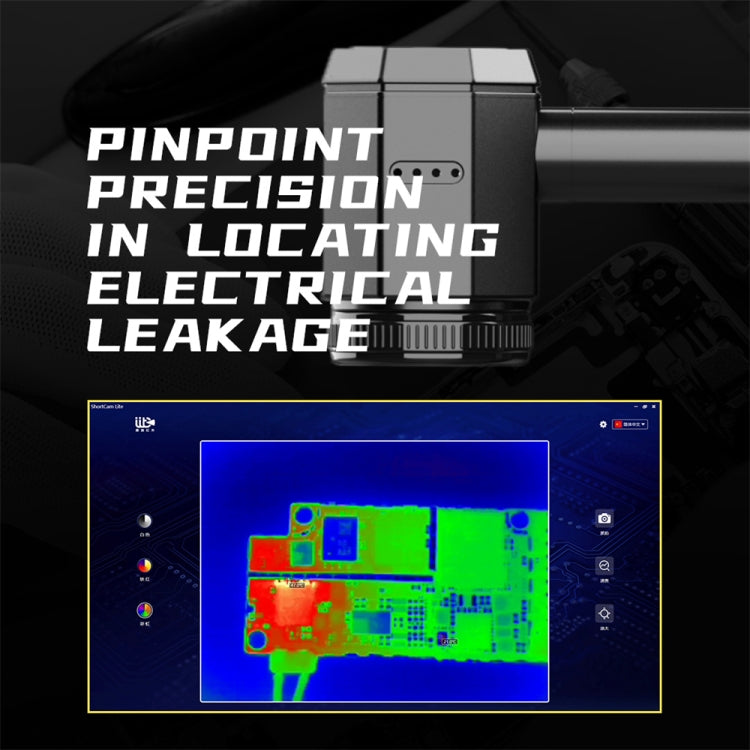

1. 256 x 192 high-definition thermal imaging, quickly and accurately locate the location of high-temperature components, and display the details of faulty components in real-time high-definition.
2. Even in the face of micro-leakage at milliamp level, detection can be done easily.

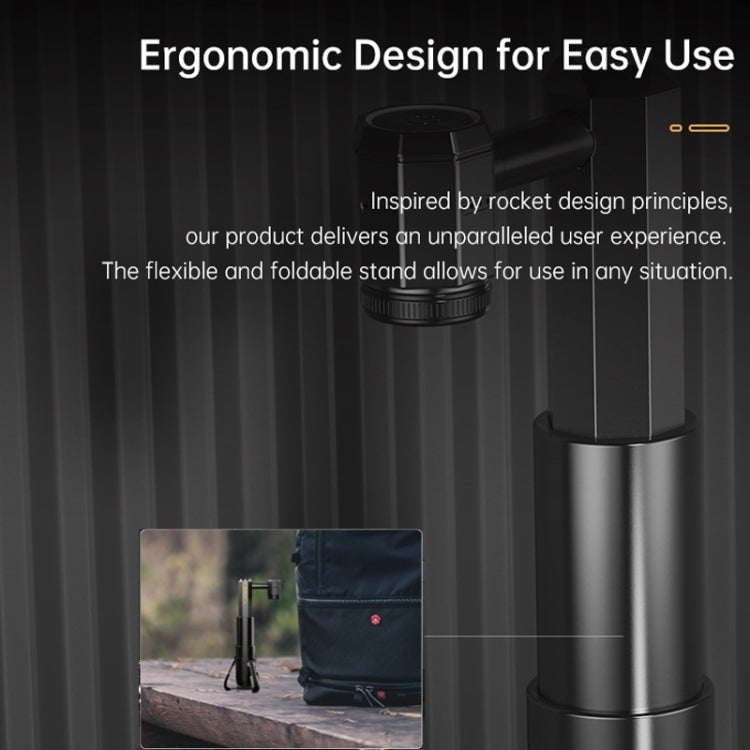

3. Telescopic height adjustment for easy storage.

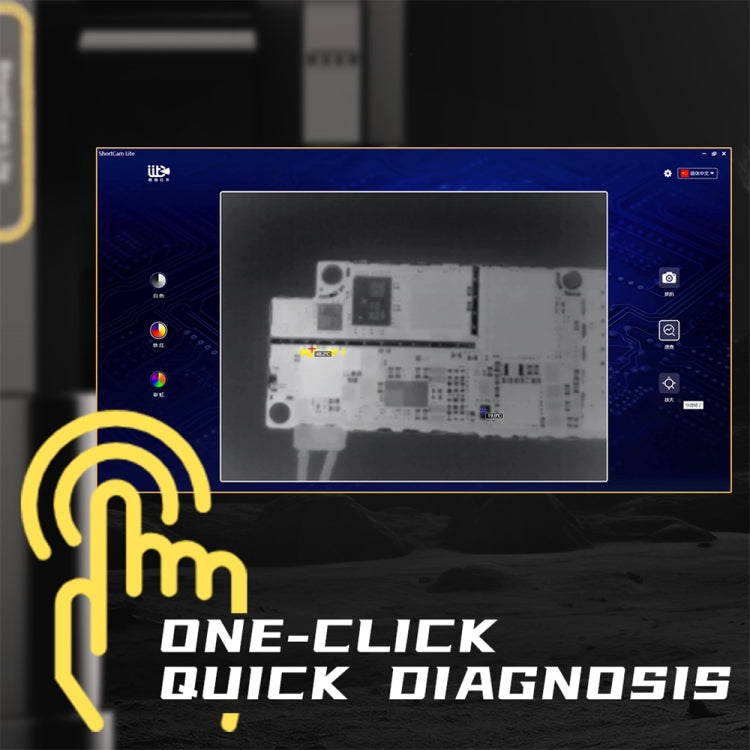

4. Supports one-click quick search function to improve efficiency.

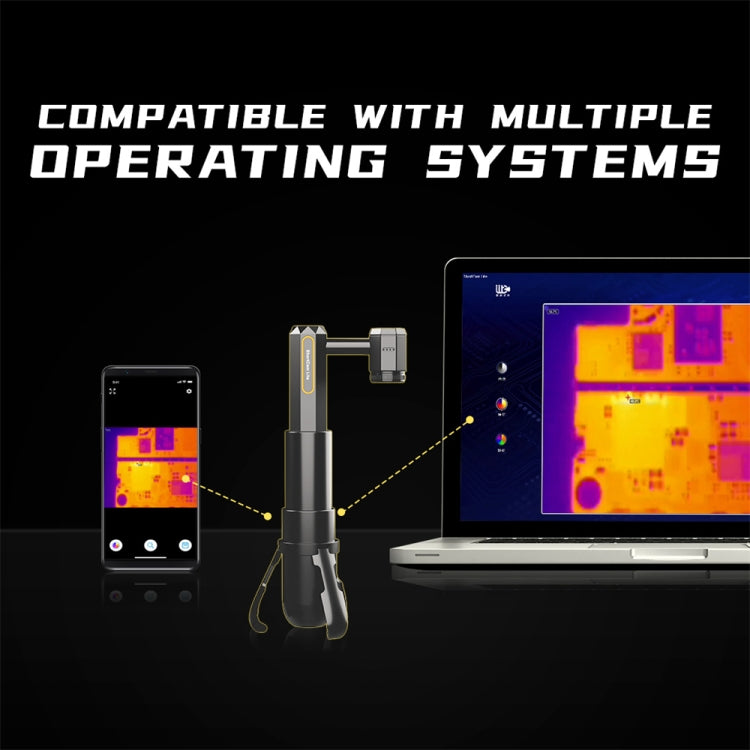

5. Supports multi-platform clients: The product has WIFI function and is suitable for iPhone/Android mobile phones/laptops and can be directly connected and used to meet various user needs.
6. The infrared lens is detachable and can be used with a microscope (microscope and microscope-specific bracket are not included).
7. Suitable for repairing mobile phone motherboards/computer motherboards/computer hard drives/smart watches and other equipment.

Parameter:
1. Detector type: uncooled vanadium oxide (VOx) detector.
2. Resolution: 256 x 192.
3. Wavelength range: 7.5~13.5 um.
4. Lens viewing angle: 25 degrees 18 degrees.
5. Display mode: thermal imaging.
6. Connection method: Type-C.
7. Image storage format: JPG.
8. Product size: 116.2 x 52 x 150mm.
