MLX90640 2.8-Inch LCD Digital Infrared Thermal Imaging Inspection Tool

• Product type: Thermal Cameras
• Compatibility: MLX90640
• Material: epoxy resin board + printed circuit board
• Key feature: Handheld multifunctional thermal imager
• Intended use: Household and industrial use
• Category: Consumer Electronics

1. Handheld multifunctional thermal imager, with the characteristics of small size and light weight
2. With a 2.8-inch TFT display, the data is clear at a glance
3. It can be used in many occasions and is an indispensable tool for household and industrial use
4. Measuring range -40 to +300 degrees Celsius, 8Hz dynamic refresh rate
5. 2.8 inches screen resolution is 320x240
6. The screen can display and track temperature (MAX), temperature (MIN) and core point temperature
7. The shell is made of FR4 epoxy sheet, which better protects the internal components and has a long service life
8. Li-ion battery powered, USB-C charging
9. Up to 4 hours of battery life, can be used while charging
10. Built-in SPI Flash chip, can store 100 pictures
11. View and copy image files by connecting to a computer or mobile phone via a data cable
12. Integrated design, no external equipment required
13. Infrared sensor: MLX90640ESF-BAB
14. Hardware resolution: 32x24 pixel far infrared array
15. Refresh rate: 8Hz
16. Field of view: horizontal 55 degrees x vertical 35 degrees
17. Emissivity: 0.95
18. Charging specification: USB Type-C 5V/1A
19. Taking pictures: In the power-on state, single press the camera/reset button to save the current image
20. View or copy images: After using the USB-C data cable to connect to the computer, single press the mode switch button
21. You can switch to the U disk mode to read or copy images
22. Reset: The body can store 99 images. When the storage is full, press and hold the camera/reset button until
23. Release it when the screen flashes, and the device will reset, and it will return to the initial state after about 15 seconds
24. Product size: 85x55x30mm
25. Battery: 3.7V 800mAh lithium-ion battery

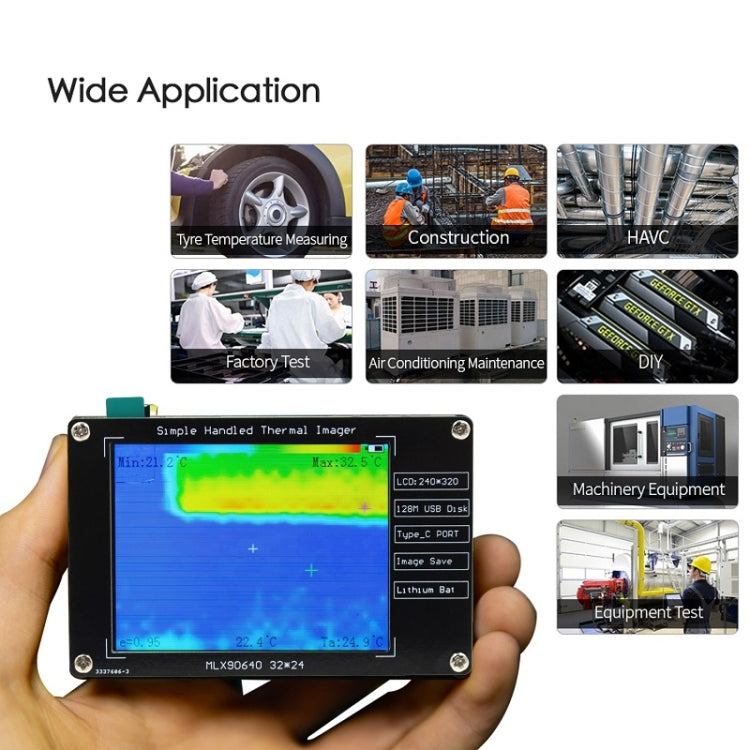

Application:
1. High-precision non-contact temperature measurement
2. Security and intrusion detection
3. Body temperature detection
4. Intelligent building environment temperature measurement and control
5. Automobile air conditioning control
6. Microwave oven and oven temperature detection and control
7. Temperature monitoring of industrial parts
8. Visual temperature sensor
9. Side leakage and maintenance of floor heating equipment
10. Thermal inspection of circuit boards and components

Packing list:
- Thermal Imager x 1
- Mirror cloth x 1
- USB Type-C x 1
